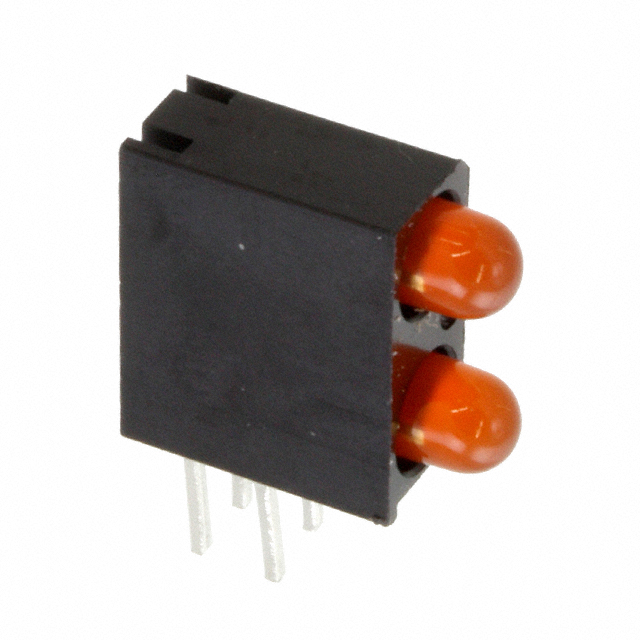

5530177F
ActiveDIALIGHT
LED CBI 3MM BI-LVL ORNG DIFF RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5530177F
ActiveDIALIGHT
LED CBI 3MM BI-LVL ORNG DIFF RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5530177F |
|---|---|
| Color | Orange (x 2) |
| Configuration | 2 High |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 7 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 1.9 V |
| Wavelength - Peak | 600 nm |
5530177 Series
| Part | Voltage Rating | Lens Style | Configuration | Lens Size | Lens Size | Lens Type | Millicandela Rating | Mounting Type | Wavelength - Peak | Viewing Angle | Color | Current | Configuration [x] | Configuration [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIALIGHT | 1.9 V | Round with Domed Top | 2 High | 3 mm | T-1 | Diffused Tinted | 7 mcd | Through Hole Right Angle | 600 nm | 60 ° | Orange (x 2) | |||
DIALIGHT | 1.9 V | 2 High | Diffused Tinted | 7 mcd | Through Hole Right Angle | 600 nm | 60 ° | Orange (x 2) | ||||||
DIALIGHT | 2 High | Diffused Tinted | 7 mcd | Through Hole Right Angle | 600 nm | 60 ° | Orange (x 2) | 10 mA | ||||||
DIALIGHT | Round with Domed Top | 3 mm | T-1 | 7 mcd | Through Hole Right Angle | 600 nm | 60 ° | Orange | 5 | 2 | ||||
DIALIGHT | 1.9 V | Round with Domed Top | 2 High | 3 mm | T-1 | Diffused Tinted | 7 mcd | Through Hole Right Angle | 600 nm | 60 ° | Orange (x 2) | |||
DIALIGHT | 1.9 V | 2 High | Diffused Tinted | 7 mcd | Through Hole Right Angle | 600 nm | 60 ° | Orange (x 2) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.48 | |
| 10 | $ 1.62 | |||
| 100 | $ 1.18 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.96 | |||
| 2000 | $ 0.91 | |||
| 5000 | $ 0.87 | |||
| 10000 | $ 0.84 | |||
Description
General part information
5530177 Series
LED Circuit Board Indicator LED Circuit Board Indicator 2 High Orange (x 2) Diffused, Tinted 1.9V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
