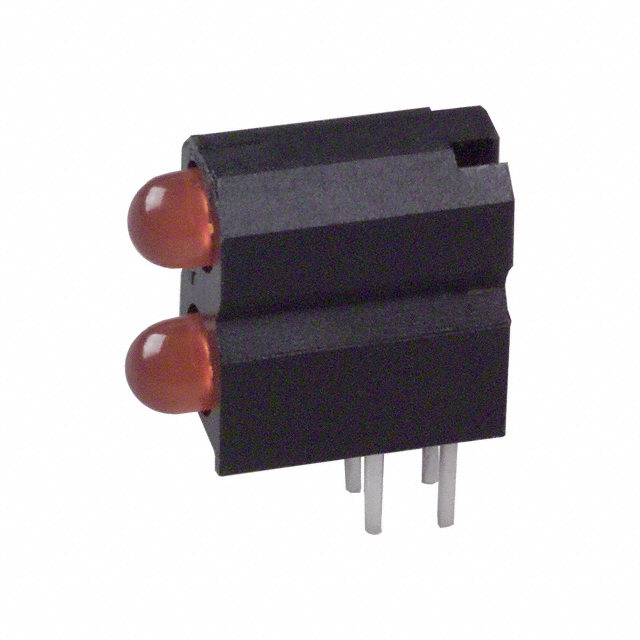

5530177300F

Active

DIALIGHT

LED CBI 3MM BI-LVL ORNG RA

Search across all available documentation for this part.

Active

DIALIGHT

LED CBI 3MM BI-LVL ORNG RA

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Lens Style	Configuration	Lens Size	Lens Size	Lens Type	Millicandela Rating	Mounting Type	Wavelength - Peak	Viewing Angle	Color	Current	Configuration [x]	Configuration [z]
DIALIGHT 5530177F	1.9 V	Round with Domed Top	2 High	3 mm	T-1	Diffused Tinted	7 mcd	Through Hole Right Angle	600 nm	60 °	Orange (x 2)
DIALIGHT 5530177306F	1.9 V		2 High			Diffused Tinted	7 mcd	Through Hole Right Angle	600 nm	60 °	Orange (x 2)
DIALIGHT 5530177300F			2 High			Diffused Tinted	7 mcd	Through Hole Right Angle	600 nm	60 °	Orange (x 2)	10 mA
DIALIGHT 5530177005F		Round with Domed Top		3 mm	T-1		7 mcd	Through Hole Right Angle	600 nm	60 °	Orange		5	2
DIALIGHT 5530177200F	1.9 V	Round with Domed Top	2 High	3 mm	T-1	Diffused Tinted	7 mcd	Through Hole Right Angle	600 nm	60 °	Orange (x 2)
DIALIGHT 5530177400F	1.9 V		2 High			Diffused Tinted	7 mcd	Through Hole Right Angle	600 nm	60 °	Orange (x 2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Orange (x 2) Diffused, Tinted 2.2V 10mA Through Hole, Right Angle
