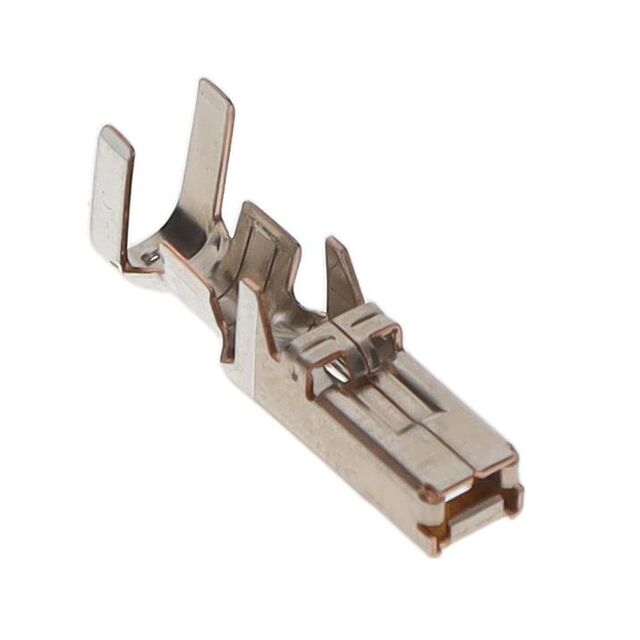

DF22A-1416SCA

Active

Hirose Electric USA, Inc.

CONTACT, SOCKET, 16-14AWG, CRIMP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONTACT, SOCKET, 16-14AWG, CRIMP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Pin or Socket	Type	Contact Finish	Contact Termination	Number of Rows	Fastening Type	Pitch [x]	Pitch [x]	Insulation Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Note	Connector Type	Color	Mounting Type	Number of Positions	Wire Gauge [Max]	Wire Gauge [Min]
Hirose Electric USA, Inc. DF22A-1416PC	Pin	Stamped	Tin	Crimp
Hirose Electric USA, Inc. DF22A-2EP-7.92C				Crimp	1	Latch Holder	7.92 mm	0.312 in	Nylon Polyamide (PA)	Male Pin	85 °C	-55 °C	Contacts Not Included	Plug	Beige	Free Hanging (In-Line)	2
Hirose Electric USA, Inc. DF22A-1416SCF	Socket		Tin	Crimp
Hirose Electric USA, Inc. DF22A-3EP-7.92C				Crimp	1	Latch Holder	7.92 mm	0.312 in	Nylon Polyamide (PA)	Male Pin	85 °C	-55 °C	Contacts Not Included	Plug	Beige	Free Hanging (In-Line)
Hirose Electric USA, Inc. DF22A-1416SCFA	Socket		Gold	Crimp
Hirose Electric USA, Inc. DF22A-4DEP-7.92C				Crimp	2	Latch Holder	7.92 mm	0.312 in	Nylon Polyamide (PA)	Male Pin	85 °C	-55 °C	Contacts Not Included	Plug	White		4
Hirose Electric USA, Inc. DF22A-1012SCA	Socket	Stamped	Gold	Crimp														12 AWG	10 AWG
Hirose Electric USA, Inc. DF22A-1416PCA	Pin	Stamped	Gold	Crimp
Hirose Electric USA, Inc. DF22A-1416SCA	Socket	Stamped	Gold	Crimp
Hirose Electric USA, Inc. DF22A-1EP-7.92C				Crimp	1	Latch Holder			Nylon Polyamide (PA)	Male Pin	85 °C	-55 °C	Contacts Not Included	Plug	Beige	Free Hanging (In-Line)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Gold 14-16 AWG Crimp Stamped
