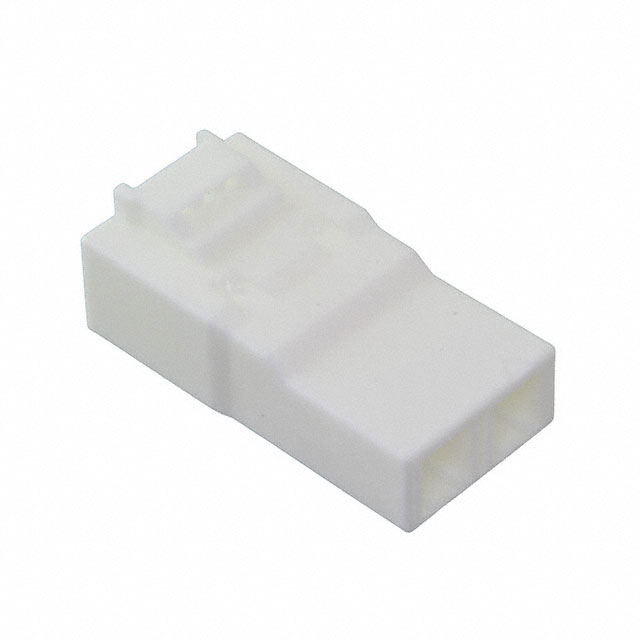

DF22A-2EP-7.92C

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 2POS 7.92MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 2POS 7.92MM

Technical Specifications

Parameters and characteristics for this part

Part	Pin or Socket	Type	Contact Finish	Contact Termination	Number of Rows	Fastening Type	Pitch [x]	Pitch [x]	Insulation Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Note	Connector Type	Color	Mounting Type	Number of Positions	Wire Gauge [Max]	Wire Gauge [Min]
Hirose Electric USA, Inc. DF22A-1416PC	Pin	Stamped	Tin	Crimp
Hirose Electric USA, Inc. DF22A-2EP-7.92C				Crimp	1	Latch Holder	7.92 mm	0.312 in	Nylon Polyamide (PA)	Male Pin	85 °C	-55 °C	Contacts Not Included	Plug	Beige	Free Hanging (In-Line)	2
Hirose Electric USA, Inc. DF22A-1416SCF	Socket		Tin	Crimp
Hirose Electric USA, Inc. DF22A-3EP-7.92C				Crimp	1	Latch Holder	7.92 mm	0.312 in	Nylon Polyamide (PA)	Male Pin	85 °C	-55 °C	Contacts Not Included	Plug	Beige	Free Hanging (In-Line)
Hirose Electric USA, Inc. DF22A-1416SCFA	Socket		Gold	Crimp
Hirose Electric USA, Inc. DF22A-4DEP-7.92C				Crimp	2	Latch Holder	7.92 mm	0.312 in	Nylon Polyamide (PA)	Male Pin	85 °C	-55 °C	Contacts Not Included	Plug	White		4
Hirose Electric USA, Inc. DF22A-1012SCA	Socket	Stamped	Gold	Crimp														12 AWG	10 AWG
Hirose Electric USA, Inc. DF22A-1416PCA	Pin	Stamped	Gold	Crimp
Hirose Electric USA, Inc. DF22A-1416SCA	Socket	Stamped	Gold	Crimp
Hirose Electric USA, Inc. DF22A-1EP-7.92C				Crimp	1	Latch Holder			Nylon Polyamide (PA)	Male Pin	85 °C	-55 °C	Contacts Not Included	Plug	Beige	Free Hanging (In-Line)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Beige 0.312" (7.92mm)
