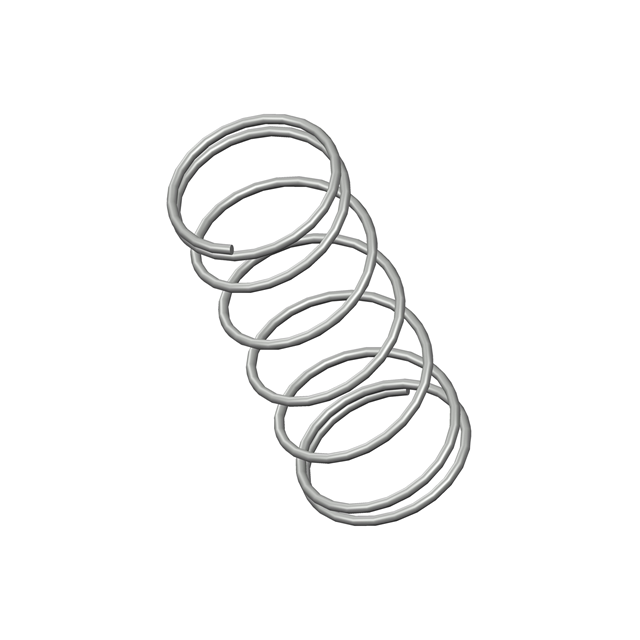

A12-14CS
ActiveCentury Spring Corp
COMP MUSIC WIRE 0.390" 0.970"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A12-14CS
ActiveCentury Spring Corp
COMP MUSIC WIRE 0.390" 0.970"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A12-14CS |
|---|---|
| Diameter - Inside [diameter] | 0.346 in |
| Diameter - Inside [diameter] | 8.79 mm |
| Diameter - Outside [diameter] | 0.39 in |
| Diameter - Outside [diameter] | 9.91 mm |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 0.97 in |
| Free Length | 24.64 mm |
| Material | Music Wire |
| Rate | 1.2 lbs/in |
| Type | Compression |
| Wire Diameter [diameter] | 0.56 mm |
| Wire Diameter [diameter] | 0.022 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.17 | |
| 50 | $ 2.07 | |||
| 150 | $ 1.97 | |||
| 300 | $ 1.87 | |||
| 500 | $ 1.64 | |||
Description
General part information
A12 Series
COMP MUSIC WIRE 0.390" 0.970"
