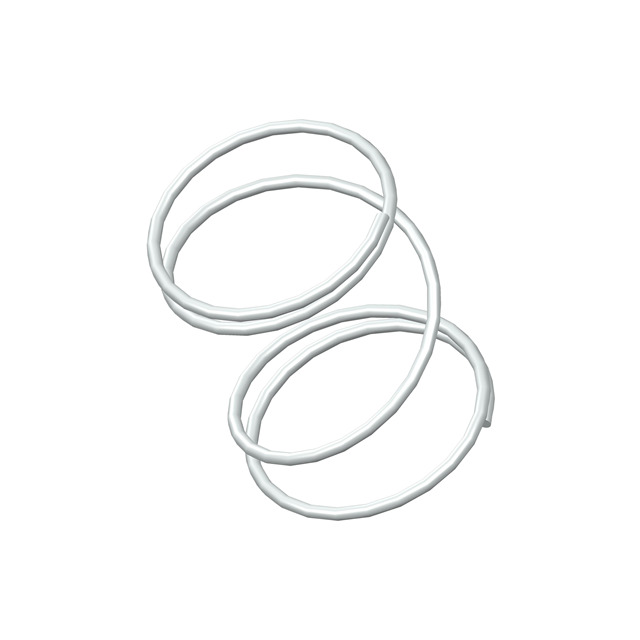

A12-13CS
ActiveCentury Spring Corp
COMPRESSION STEEL 0.406" 0.540"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A12-13CS
ActiveCentury Spring Corp
COMPRESSION STEEL 0.406" 0.540"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A12-13CS |
|---|---|
| Diameter - Inside | 9.25 mm |
| Diameter - Inside | 0.364 in |
| Diameter - Outside [diameter] | 0.406 in |
| Diameter - Outside [diameter] | 10.31 mm |
| End Style | Closed |
| Finish | None |
| Free Length | 13.72 mm |
| Free Length | 0.54 in |
| Material | Stainless Steel |
| Rate | 2.1 lbs/in |
| Type | Compression |
| Wire Diameter | 0.021 in |
| Wire Diameter | 0.53 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.30 | |
| 50 | $ 2.40 | |||
| 150 | $ 2.28 | |||
| 300 | $ 2.15 | |||
| 500 | $ 1.90 | |||
Description
General part information
A12 Series
COMPRESSION STEEL 0.406" 0.540"
