2834847

Active

Phoenix Contact

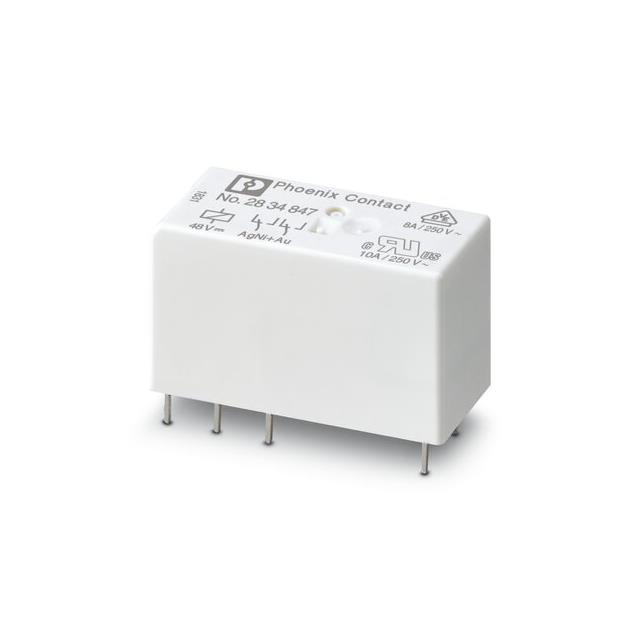

RELAY GEN PURPOSE DPDT 8A 48V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 48V

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Coil Resistance	Coil Voltage	Switching Voltage	Operate Time	Coil Type	Contact Material	Release Time	Contact Rating (Current)	Contact Form	Relay Type	Coil Current	Load - Max Switching
Phoenix Contact 2834821	cULus EAC UR	85 °C	-40 °C	PC Pin	Through Hole	5.52 kOhms	48 VDC	250 VAC 250 VDC	7 ms	Non Latching	Silver Nickel (AgNi)	3 ms	16 A	SPDT (1 Form C)	General Purpose	8.7 mA
Phoenix Contact 2834834		85 °C	-40 °C	PC Pin	Through Hole	5.52 kOhms	48 VDC	250 VAC 250 VDC	7 ms	Non Latching	Silver Nickel (AgNi)	3 ms	8 A	DPDT (2 Form C)	General Purpose	8.7 mA
Phoenix Contact 2834847	cULus EAC UR	85 °C	-40 °C	PC Pin	Through Hole	5.52 kOhms	48 VDC	250 VAC	7 ms	Non Latching	Gold (Au) Silver Nickel (AgNi)	3 ms	8 A	DPDT (2 Form C)	General Purpose	8.7 mA	2000 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 10.68

General part information

General Purpose Relay DPDT (2 Form C) 48VDC Coil Through Hole
