Technical Specifications
Parameters and characteristics for this part
| Specification | 2834834 |
|---|---|
| Coil Current | 8.7 mA |
| Coil Resistance | 5.52 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 48 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A |
| Mounting Type | Through Hole |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 3 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.43 | |
| 10 | $ 10.68 | |||
| 50 | $ 9.83 | |||
| 100 | $ 9.08 | |||
| 250 | $ 8.65 | |||
| 500 | $ 8.61 | |||
Description
General part information
28348 Series

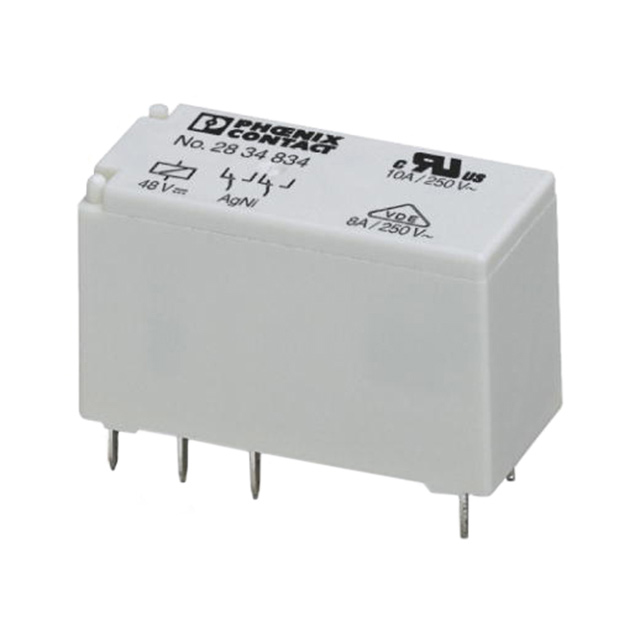

General Purpose Relay DPDT (2 Form C) 48VDC Coil Through Hole
