Technical Specifications
Parameters and characteristics for this part
| Specification | C3PES-5006M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 50 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.05 in |
| Pitch - Connector | 1.27 mm |
| Shielding | Unshielded |
| Usage | Board In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.95 | |
| 10 | $ 13.81 | |||
| 25 | $ 12.49 | |||
| 50 | $ 11.60 | |||
| 100 | $ 10.80 | |||
| 250 | $ 9.84 | |||
| 500 | $ 9.20 | |||
| 1000 | $ 8.62 | |||
Description
General part information
C3PES-5 Series

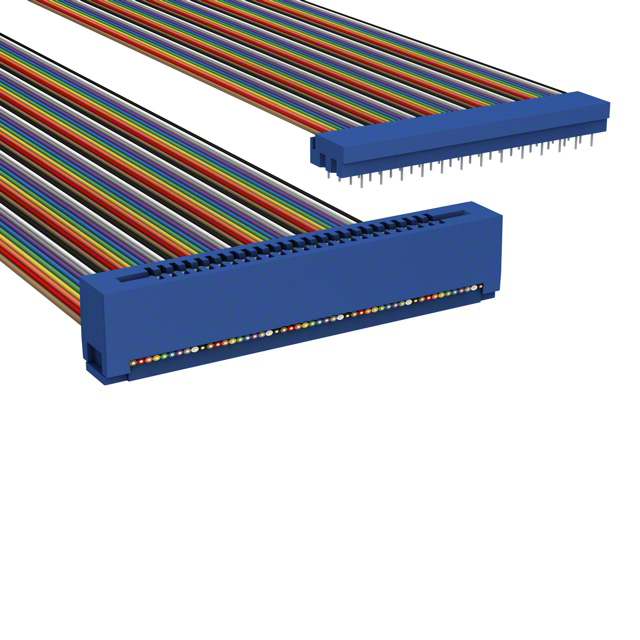

50 Position Cable Assembly Rectangular Card Edge to PCB 0.500' (152.40mm, 6.00")
