C3PES-5018G
ActiveCW Industries
IDC CABLE - CPC50S/AE50G/CCE50S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
C3PES-5018G
ActiveCW Industries
IDC CABLE - CPC50S/AE50G/CCE50S
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C3PES-5018G |
|---|---|
| Cable Termination | IDC |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 50 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.05 in |
| Pitch - Connector | 1.27 mm |
| Shielding | Unshielded |
| Usage | Board In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.05 | |
| 10 | $ 12.45 | |||
| 25 | $ 11.97 | |||
| 50 | $ 11.49 | |||
| 100 | $ 10.86 | |||
| 250 | $ 9.90 | |||
| 500 | $ 9.26 | |||
| 1000 | $ 8.49 | |||
Description
General part information
C3PES-5 Series

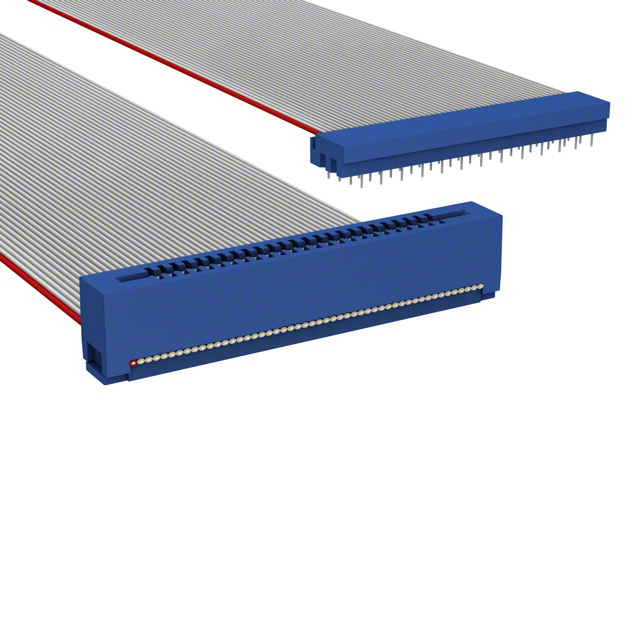

50 Position Cable Assembly Rectangular Card Edge to PCB 1.50' (457.20mm)
Documents
Technical documentation and resources
