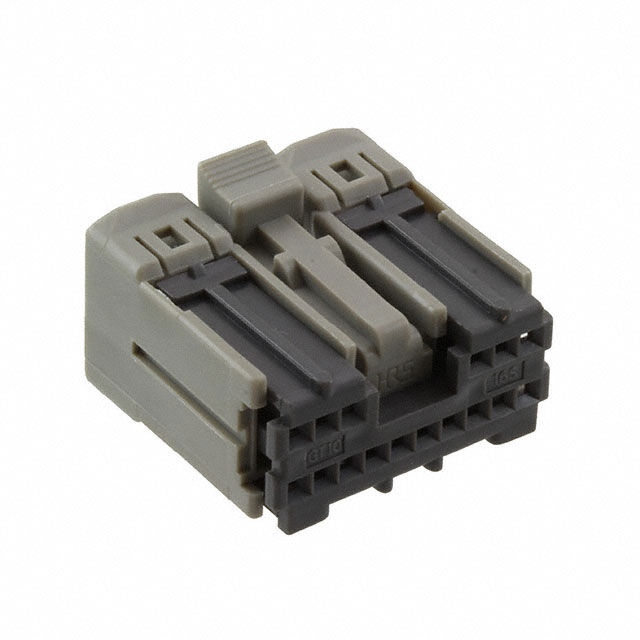

GT10-16DS-HU

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 16POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GT10-16DS-HU

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 16POS 2.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GT10-16DS-HU

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

GT10 Series

Part	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish	Accessory Type	For Use With/Related Products	Pitch [x]	Pitch [x]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Rows	Color	Fastening Type	Connector Type	Number of Positions	Note	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Style	Number of Positions Loaded	Insulation Color	Termination	Contact Shape	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Shrouding	Contact Length - Post	Contact Length - Post	Contact Material
Hirose Electric USA, Inc. GT10-2022PCF	Crimp	20 AWG	22 AWG	Pin	Tin
Hirose Electric USA, Inc. GT10R-2022SCF						Contact	GT10 Series
Hirose Electric USA, Inc. GT10A-2022PCF						Contact	GT10 Series
Hirose Electric USA, Inc. GT10-2428SCF
Hirose Electric USA, Inc. GT10-16DP-HU	Crimp							0.079 in	2 mm	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Free Hanging (In-Line)	2	Gray	Latch Holder	Plug	16	Contacts Not Included	Male Pin
Hirose Electric USA, Inc. GT10A-2022SCF						Contact	GT10 Series
Hirose Electric USA, Inc. GT10-16DS-HU	Crimp							0.079 in	2 mm	Polybutylene Terephthalate (PBT)	-55 °C	105 ░C	Free Hanging (In-Line)	2	Gray	Latch Lock	Receptacle	16	Contacts Not Included	Female Socket
Hirose Electric USA, Inc. GT10NS-2022SCF						Contact	GT10 Series
Hirose Electric USA, Inc. GT10-2022SCF
Hirose Electric USA, Inc. GT10-16DP-DS(70)										Polybutylene Terephthalate (PBT)	-55 °C	105 ░C	Through Hole Right Angle	2		Push-Pull	Header	16		Male Pin	3 mm	0.118 in	250 VAC	Board to Cable/Wire	All	Gray	Solder	Circular	3 A	0.079 in	2 mm	1 µm	39.4 µin	13.6 mm	0.535 in	Tin	Shrouded - 4 Wall	0.157 in	4 mm	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.47

Description

General part information

GT10 Series

16 Rectangular Connectors - Housings Receptacle Gray 0.079" (2.00mm)
