GT10-16DP-DS(70)

Active

Hirose Electric USA, Inc.

CONN PIN HEADER PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

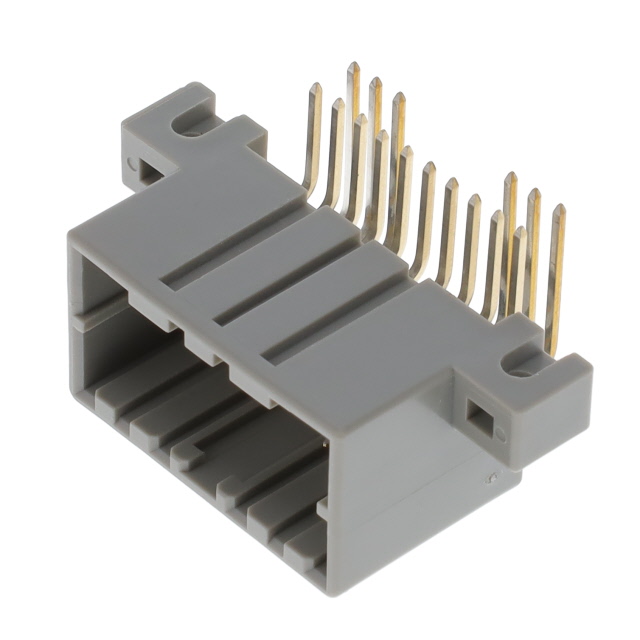

GT10-16DP-DS(70)

Active

Hirose Electric USA, Inc.

CONN PIN HEADER PCB R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GT10-16DP-DS(70)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Post	0.157 in
Contact Length - Post	4 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Gray
Insulation Height	13.6 mm
Insulation Height	0.535 in
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

GT10 Series

Part	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish	Accessory Type	For Use With/Related Products	Pitch [x]	Pitch [x]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Rows	Color	Fastening Type	Connector Type	Number of Positions	Note	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Style	Number of Positions Loaded	Insulation Color	Termination	Contact Shape	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Shrouding	Contact Length - Post	Contact Length - Post	Contact Material
Hirose Electric USA, Inc. GT10-2022PCF	Crimp	20 AWG	22 AWG	Pin	Tin
Hirose Electric USA, Inc. GT10R-2022SCF						Contact	GT10 Series
Hirose Electric USA, Inc. GT10A-2022PCF						Contact	GT10 Series
Hirose Electric USA, Inc. GT10-2428SCF
Hirose Electric USA, Inc. GT10-16DP-HU	Crimp							0.079 in	2 mm	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Free Hanging (In-Line)	2	Gray	Latch Holder	Plug	16	Contacts Not Included	Male Pin
Hirose Electric USA, Inc. GT10A-2022SCF						Contact	GT10 Series
Hirose Electric USA, Inc. GT10-16DS-HU	Crimp							0.079 in	2 mm	Polybutylene Terephthalate (PBT)	-55 °C	105 ░C	Free Hanging (In-Line)	2	Gray	Latch Lock	Receptacle	16	Contacts Not Included	Female Socket
Hirose Electric USA, Inc. GT10NS-2022SCF						Contact	GT10 Series
Hirose Electric USA, Inc. GT10-2022SCF
Hirose Electric USA, Inc. GT10-16DP-DS(70)										Polybutylene Terephthalate (PBT)	-55 °C	105 ░C	Through Hole Right Angle	2		Push-Pull	Header	16		Male Pin	3 mm	0.118 in	250 VAC	Board to Cable/Wire	All	Gray	Solder	Circular	3 A	0.079 in	2 mm	1 µm	39.4 µin	13.6 mm	0.535 in	Tin	Shrouded - 4 Wall	0.157 in	4 mm	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 4.24

Description

General part information

GT10 Series

Connector Header Through Hole, Right Angle 16 position 0.079" (2.00mm)
