09120113111

Active

HARTING Technology Group

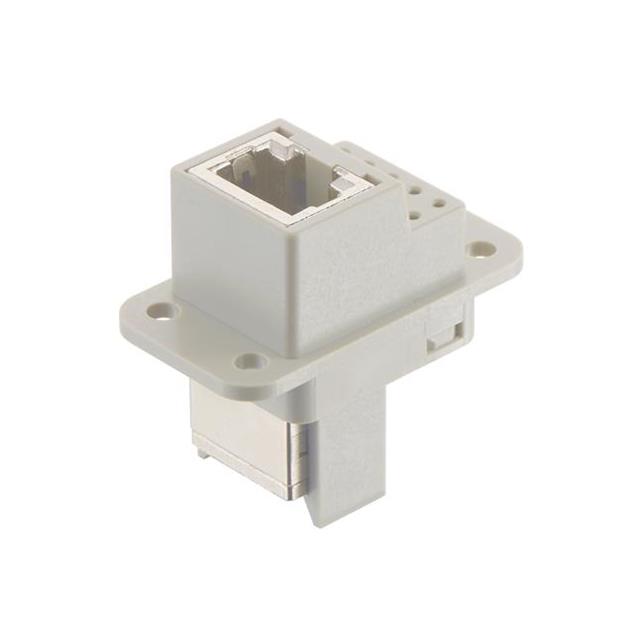

CONNECTOR: HDC; CONTACT INSERT; FEMALE; 6.5A; 50V; HAN Q; 10+RJ45

Search across all available documentation for this part.

Active

HARTING Technology Group

CONNECTOR: HDC; CONTACT INSERT; FEMALE; 6.5A; 50V; HAN Q; 10+RJ45

Technical Specifications

Parameters and characteristics for this part

Specification	09120113111

Color	Gray
Connector Type	Insert with RJ45
Current Rating (Amps)	5 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	8p8c+10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	50 V

Part	Current Rating (Amps)	Gender	Housing Material	Connector Type	Number of Positions	Termination Style	Voltage Rating	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions [custom]	Number of Positions [custom]	Contact Type	Number of Positions	Size
HARTING Technology Group 09120113111	5 A	Female	Polycarbonate (PC)	Insert with RJ45	8p8c+10	Crimp	50 V	UL94 V-0	85 °C	-40 °C	Gray
HARTING Technology Group 09120113001	5 A	Male	Polycarbonate (PC)	Insert with RJ45	8p8c+10	Crimp	50 V	UL94 V-0	85 °C	-40 °C	Gray
HARTING Technology Group 09120073041		Male	Polycarbonate (PC)	Insert without Contacts		Crimp		UL94 V-0	125 °C	-40 °C	Gray	3 4	Ground
HARTING Technology Group 09120073001	10 A	Male	Polycarbonate (PC)	Insert without Contacts		Crimp	600 V	UL94 V-0	125 °C	-40 °C	Gray			Han® D	7	3 A
HARTING Technology Group 09120073141		Female	Polycarbonate (PC)	Insert without Contacts		Crimp		UL94 V-0	125 °C	-40 °C	Gray	3 4	Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert with RJ45 Gray 8p8c+10 Position Crimp
