09120073001

Active

HARTING Technology Group

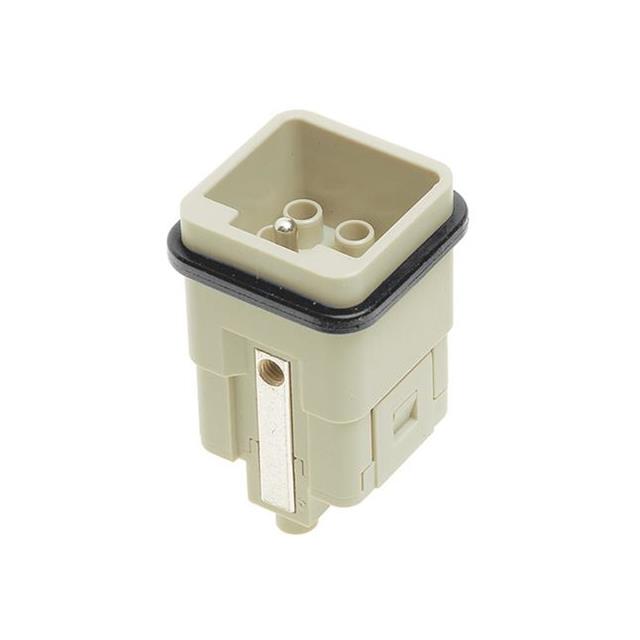

INSERT MALE 7POS CRIMP

Search across all available documentation for this part.

Active

HARTING Technology Group

INSERT MALE 7POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	09120073001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® D
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	Crimp
Voltage Rating	600 V

Part	Current Rating (Amps)	Gender	Housing Material	Connector Type	Number of Positions	Termination Style	Voltage Rating	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions [custom]	Number of Positions [custom]	Contact Type	Number of Positions	Size
HARTING Technology Group 09120113111	5 A	Female	Polycarbonate (PC)	Insert with RJ45	8p8c+10	Crimp	50 V	UL94 V-0	85 °C	-40 °C	Gray
HARTING Technology Group 09120113001	5 A	Male	Polycarbonate (PC)	Insert with RJ45	8p8c+10	Crimp	50 V	UL94 V-0	85 °C	-40 °C	Gray
HARTING Technology Group 09120073041		Male	Polycarbonate (PC)	Insert without Contacts		Crimp		UL94 V-0	125 °C	-40 °C	Gray	3 4	Ground
HARTING Technology Group 09120073001	10 A	Male	Polycarbonate (PC)	Insert without Contacts		Crimp	600 V	UL94 V-0	125 °C	-40 °C	Gray			Han® D	7	3 A
HARTING Technology Group 09120073141		Female	Polycarbonate (PC)	Insert without Contacts		Crimp		UL94 V-0	125 °C	-40 °C	Gray	3 4	Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 7 Position Crimp
