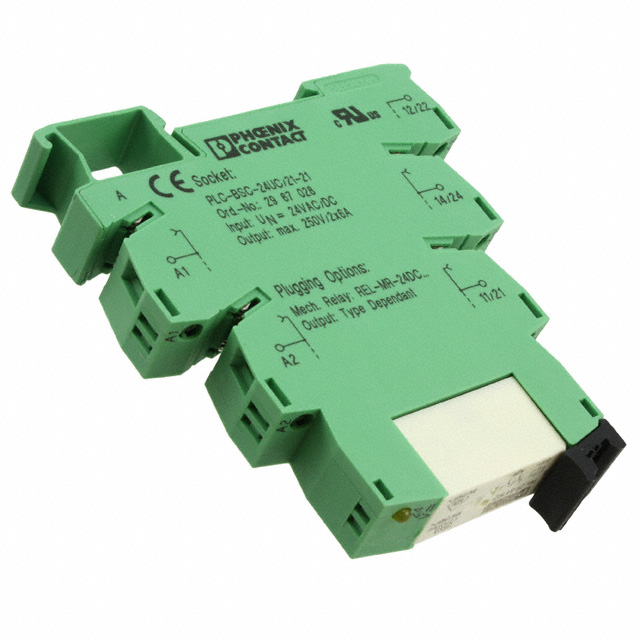

2967073 - 2967073

2967073

Active
Phoenix Contact

POWER RELAY, DPDT, 24 VAC/VDC, 6 A, PLC RSC SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENTechnical Data Sheet EN+2
2967073 - 2967073

2967073

Active
Phoenix Contact

POWER RELAY, DPDT, 24 VAC/VDC, 6 A, PLC RSC SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

DocumentsTechnical Data Sheet ENTechnical Data Sheet EN+2

Technical Specifications

Parameters and characteristics for this part

Specification2967073
Approval AgencyUKCA, CE
Coil Current17.5 mA
Coil Resistance1371 Ohms
Coil TypeNon Latching
Coil Voltage24 VAC
Contact FormDPDT (2 Form C)
Contact MaterialSilver Nickel (AgNi)
Contact Rating (Current)6 A
FeaturesLighted Indicator, Socket Included
Mounting TypeDIN Rail
Operate Time8 ms
Operating Temperature [Max]60 °C
Operating Temperature [Min]-40 °C
Relay TypeGeneral Purpose
Release Time10 ms
Switching Voltage250 VAC, 250 VDC
Termination StyleScrew Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 27.76
10$ 25.95
50$ 23.87
100$ 23.42
NewarkEach 1$ 50.81
10$ 49.02
50$ 46.23
100$ 42.55
250$ 39.31
500$ 37.52
1000$ 35.18

Description

General part information

29670 Series

General Purpose Relay DPDT (2 Form C) 24VAC/DC Coil DIN Rail
