2967099

Active

Phoenix Contact

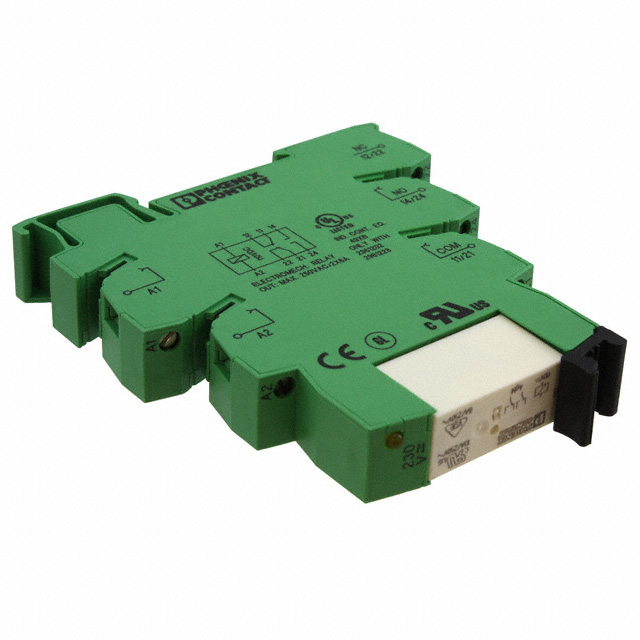

ELECTROMECHANICAL RELAY 220VDC 230VAC 6A DPDT(14X94X80)MM DIN RAIL RELAY MODULE

Search across all available documentation for this part.

Active

Phoenix Contact

ELECTROMECHANICAL RELAY 220VDC 230VAC 6A DPDT(14X94X80)MM DIN RAIL RELAY MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	2967099

Approval Agency	UKCA, CE
Coil Current	4.5 mA
Coil Resistance	51.1 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	7 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Release Time	Coil Resistance	Contact Material	Approval Agency	Coil Current	Mounting Type	Operate Time	Contact Form	Coil Type	Features	Termination Style	Relay Type	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Switching Voltage
Phoenix Contact 2967099	10 ms	51.1 kOhms	Silver Nickel (AgNi)	CE UKCA	4.5 mA	DIN Rail	7 ms	DPDT (2 Form C)	Non Latching	Lighted Indicator Socket Included	Screw Terminal	General Purpose	230 VAC	-40 °C	55 °C	6 A	250 VAC 250 VDC
Phoenix Contact 2967086	10 ms	26.66 kOhms	Silver Nickel (AgNi)	CE UKCA	4.5 mA	DIN Rail	7 ms	DPDT (2 Form C)	Non Latching	Lighted Indicator Socket Included	Screw Terminal	General Purpose	120 VAC 120 VDC	-40 °C	60 °C	6 A	250 VAC 250 VDC
Phoenix Contact 2967060	10 ms	1440 Ohms	Silver Nickel (AgNi)	CE UKCA	18 mA	DIN Rail	8 ms	DPDT (2 Form C)	Non Latching	Lighted Indicator Socket Included	Screw Terminal	General Purpose	24 VDC	-40 °C	60 °C	6 A	250 VAC 250 VDC
Phoenix Contact 2967073	10 ms	1371 Ohms	Silver Nickel (AgNi)	CE UKCA	17.5 mA	DIN Rail	8 ms	DPDT (2 Form C)	Non Latching	Lighted Indicator Socket Included	Screw Terminal	General Purpose	24 VAC	-40 °C	60 °C	6 A	250 VAC 250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.44
Newark	Each	1	$ 12.07

General part information

General Purpose Relay DPDT (2 Form C) 230VAC/DC Coil DIN Rail
