19000005097

Active

HARTING Technology Group

CABLE GLAND, M40, BRASS, 20 MM, 26 MM

Search across all available documentation for this part.

Active

HARTING Technology Group

CABLE GLAND, M40, BRASS, 20 MM, 26 MM

Technical Specifications

Parameters and characteristics for this part

Specification	19000005097

Ingress Protection	IP68, IP69K
Material	Brass
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	26 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.024 "
Outside Cable Diameter (Min) [Min] [diameter]	0.787 in
Outside Cable Diameter (Min) [Min] [diameter]	20 mm
Type	Cable Gland

Part	Specifications	For Use With/Related Products	Accessory Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Type	Material	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Outside Cable Diameter (Min)
HARTING Technology Group 19000005071	M25 Thread	Han® Housings	Blanking Plug
HARTING Technology Group 19000005086				1.26 "	32 mm	M50	100 °C	-40 °C	Cable Gland	Brass	IP68 IP69K	38 mm	1.496 in
HARTING Technology Group 19000005097				0.787 in	20 mm		100 °C	-40 °C	Cable Gland	Brass	IP68 IP69K	26 mm	1.024 "
HARTING Technology Group 19000005173	M40 Thread	Han® Housings	Blanking Plug
HARTING Technology Group 19000005132				0.236 in	6 mm	M20	100 °C	-40 °C	Cable Gland	Plastic		12 mm	0.472 in	Black
HARTING Technology Group 19000005072	M32 Thread	Han® Housings	Blanking Plug
HARTING Technology Group 19000005082				0.236 in	6 mm	M20	100 °C	-40 °C	Cable Gland	Brass	IP68 IP69K	12 mm	0.472 in
HARTING Technology Group 19000005158	M40 Thread	Han® Housings	Cable Gland
HARTING Technology Group 19000005193				0.512 in		M25	100 °C	-40 °C	Cable Gland	Polyamide (PA) Nylon	IP68 IP69K	18.01 mm	0.709 in	Black	13 mm
HARTING Technology Group 19000005186				0.512 in		M32	100 °C	-40 °C	Cable Gland	Polyamide (PA) Nylon	IP68 IP69K	20 mm	0.787 "	Black	13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

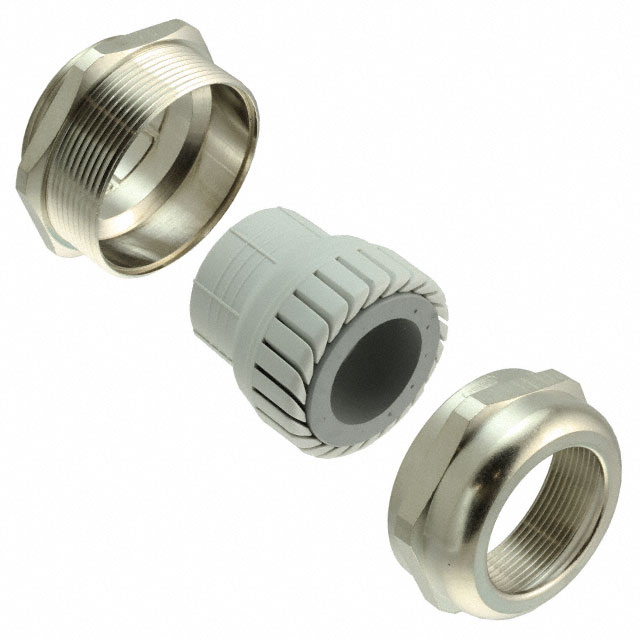

The 19000005097 is a grey Cable Gland with metal screwing used for cable entry protection with metric cable entries.
