19000005071

Active

HARTING Technology Group

HOLE PLUG, HAN®, METAL, M25, 32.3 MM, HAN SERIES

Search across all available documentation for this part.

Active

HARTING Technology Group

HOLE PLUG, HAN®, METAL, M25, 32.3 MM, HAN SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	19000005071

Accessory Type	Blanking Plug
For Use With/Related Products	Han® Housings
Specifications	M25 Thread

Part	Specifications	For Use With/Related Products	Accessory Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Type	Material	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Outside Cable Diameter (Min)
HARTING Technology Group 19000005071	M25 Thread	Han® Housings	Blanking Plug
HARTING Technology Group 19000005086				1.26 "	32 mm	M50	100 °C	-40 °C	Cable Gland	Brass	IP68 IP69K	38 mm	1.496 in
HARTING Technology Group 19000005097				0.787 in	20 mm		100 °C	-40 °C	Cable Gland	Brass	IP68 IP69K	26 mm	1.024 "
HARTING Technology Group 19000005173	M40 Thread	Han® Housings	Blanking Plug
HARTING Technology Group 19000005132				0.236 in	6 mm	M20	100 °C	-40 °C	Cable Gland	Plastic		12 mm	0.472 in	Black
HARTING Technology Group 19000005072	M32 Thread	Han® Housings	Blanking Plug
HARTING Technology Group 19000005082				0.236 in	6 mm	M20	100 °C	-40 °C	Cable Gland	Brass	IP68 IP69K	12 mm	0.472 in
HARTING Technology Group 19000005158	M40 Thread	Han® Housings	Cable Gland
HARTING Technology Group 19000005193				0.512 in		M25	100 °C	-40 °C	Cable Gland	Polyamide (PA) Nylon	IP68 IP69K	18.01 mm	0.709 in	Black	13 mm
HARTING Technology Group 19000005186				0.512 in		M32	100 °C	-40 °C	Cable Gland	Polyamide (PA) Nylon	IP68 IP69K	20 mm	0.787 "	Black	13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

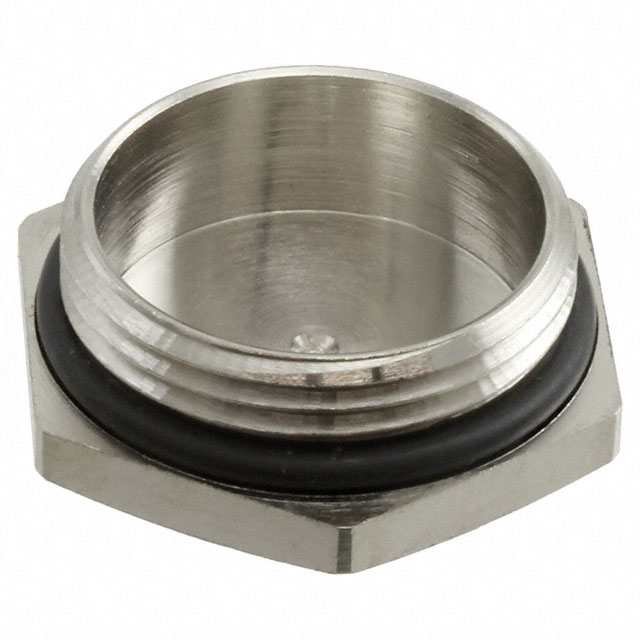

The 19000005071 is a M25 Blanking Piece made of metal for metric cable entry.
