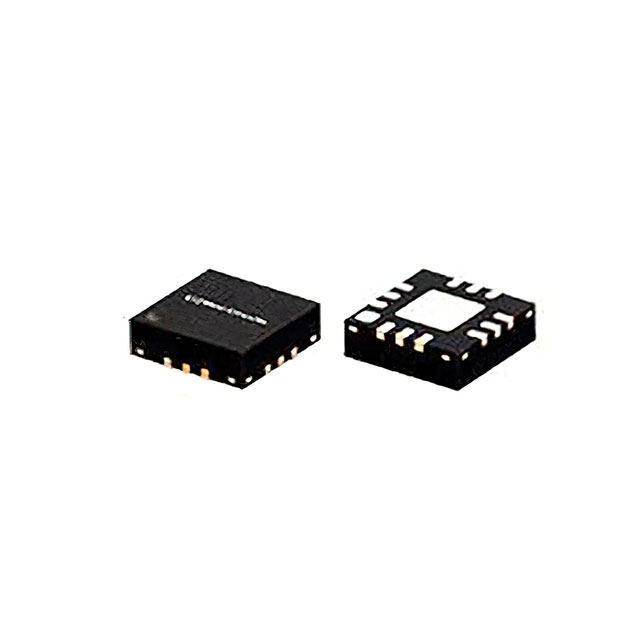

PMA3-352GLN+

Active

MINI-CIRCUITS

IC AMP LTE 2.5GHZ-3.5GHZ 12MCLP

Search across all available documentation for this part.

Active

MINI-CIRCUITS

IC AMP LTE 2.5GHZ-3.5GHZ 12MCLP

Technical Specifications

Parameters and characteristics for this part

Specification	PMA3-352GLN+

Current - Supply	69 mA
Frequency [Max]	3.5 GHz
Frequency [Min]	2.5 GHz
Gain	30.6 dB
Mounting Type	Surface Mount
Noise Figure	0.7 dB
P1dB	14.9 dBm
Package / Case	12-VQFN Exposed Pad
RF Type	LTE, WiFi, Radar, UMTS, WLAN, WiMax
Supplier Device Package	12-MCLP (3x3)
Test Frequency	2.7 GHz
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Gain	Test Frequency	Mounting Type	Current - Supply	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Frequency [Max]	Frequency [Min]	P1dB	Noise Figure	RF Type
MINI-CIRCUITS PMA3-14LN+	21.6 dB	2 GHz	Surface Mount	67 mA	12-VQFN Exposed Pad	5.75 V	6.25 V	12-MCLP (3x3)	10 GHz	50 MHz	22.9 dBm	2.1 dB	EDGE LTE Radar SATCOM W-CDMA WiFi WLAN
MINI-CIRCUITS PMA3-453+	9.1 dBi	40 GHz	Surface Mount	68 mA	12-VQFN Exposed Pad	3.75 V	4.25 V	12-MCLP (3x3)	45 GHz	10 GHz	11.7 dBm	5.2 dB	General Purpose
MINI-CIRCUITS PMA3-34GLN+	18.2 dB		Surface Mount	68 mA	12-VQFN Exposed Pad	3.75 V	4.25 V	12-MCLP (3x3)	30 GHz	10 GHz	11 dBm	2.4 dB	General Purpose
MINI-CIRCUITS PMA3-83MP+	17.3 dB	2 GHz	Surface Mount	144 mA	12-VQFN Exposed Pad	7.6 V	8.4 V	12-MCLP (3x3)	8 GHz	400 MHz	27.8 dBm	3.3 dB	EDGE LTE Radar SATCOM W-CDMA WiFi WLAN
MINI-CIRCUITS PMA3-313GLN+	17.8 dB	31 GHz	Surface Mount	68 mA	12-VQFN Exposed Pad	3.75 V	4.25 V	12-MCLP (3x3)	31 GHz	26.5 GHz	11.1 dBm	2.6 dB	General Purpose
MINI-CIRCUITS PMA3-63GLN+	26.9 dB	1.8 GHz	Surface Mount	69 mA	12-VQFN Exposed Pad			12-MCLP (3x3)	6 GHz	1.8 GHz	15.2 dBm	1.1 dB	LTE Radar SATCOM UMTS WiFi WiMax WLAN
MINI-CIRCUITS PMA3-352GLN+	30.6 dB	2.7 GHz	Surface Mount	69 mA	12-VQFN Exposed Pad	4.75 V	5.25 V	12-MCLP (3x3)	3.5 GHz	2.5 GHz	14.9 dBm	0.7 dB	LTE Radar UMTS WiFi WiMax WLAN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Amplifier IC LTE, Radar, UMTS, WiFi, WiMAX, WLAN 2.5GHz ~ 3.5GHz 12-MCLP (3x3)
