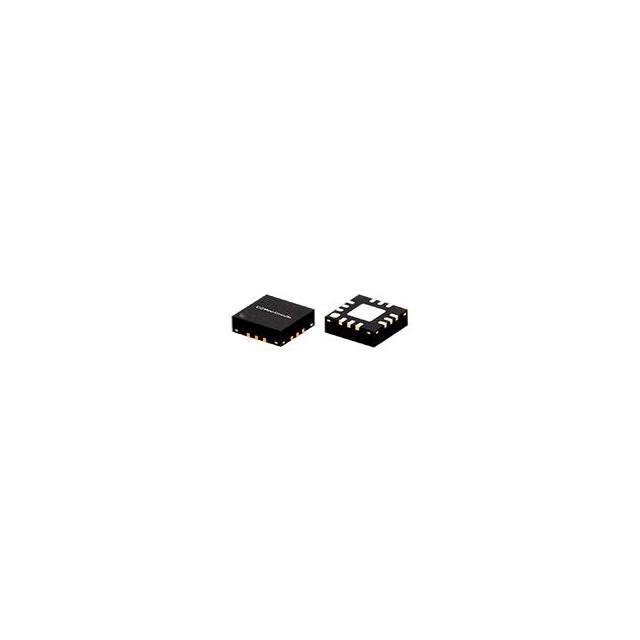

PMA3-453+

Active

MINI-CIRCUITS

IC RF AMP GPS 10GHZ-45GHZ 12MCLP

Search across all available documentation for this part.

Active

MINI-CIRCUITS

IC RF AMP GPS 10GHZ-45GHZ 12MCLP

Technical Specifications

Parameters and characteristics for this part

Part	Gain	Test Frequency	Mounting Type	Current - Supply	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Frequency [Max]	Frequency [Min]	P1dB	Noise Figure	RF Type
MINI-CIRCUITS PMA3-14LN+	21.6 dB	2 GHz	Surface Mount	67 mA	12-VQFN Exposed Pad	5.75 V	6.25 V	12-MCLP (3x3)	10 GHz	50 MHz	22.9 dBm	2.1 dB	EDGE LTE Radar SATCOM W-CDMA WiFi WLAN
MINI-CIRCUITS PMA3-453+	9.1 dBi	40 GHz	Surface Mount	68 mA	12-VQFN Exposed Pad	3.75 V	4.25 V	12-MCLP (3x3)	45 GHz	10 GHz	11.7 dBm	5.2 dB	General Purpose
MINI-CIRCUITS PMA3-34GLN+	18.2 dB		Surface Mount	68 mA	12-VQFN Exposed Pad	3.75 V	4.25 V	12-MCLP (3x3)	30 GHz	10 GHz	11 dBm	2.4 dB	General Purpose
MINI-CIRCUITS PMA3-83MP+	17.3 dB	2 GHz	Surface Mount	144 mA	12-VQFN Exposed Pad	7.6 V	8.4 V	12-MCLP (3x3)	8 GHz	400 MHz	27.8 dBm	3.3 dB	EDGE LTE Radar SATCOM W-CDMA WiFi WLAN
MINI-CIRCUITS PMA3-313GLN+	17.8 dB	31 GHz	Surface Mount	68 mA	12-VQFN Exposed Pad	3.75 V	4.25 V	12-MCLP (3x3)	31 GHz	26.5 GHz	11.1 dBm	2.6 dB	General Purpose
MINI-CIRCUITS PMA3-63GLN+	26.9 dB	1.8 GHz	Surface Mount	69 mA	12-VQFN Exposed Pad			12-MCLP (3x3)	6 GHz	1.8 GHz	15.2 dBm	1.1 dB	LTE Radar SATCOM UMTS WiFi WiMax WLAN
MINI-CIRCUITS PMA3-352GLN+	30.6 dB	2.7 GHz	Surface Mount	69 mA	12-VQFN Exposed Pad	4.75 V	5.25 V	12-MCLP (3x3)	3.5 GHz	2.5 GHz	14.9 dBm	0.7 dB	LTE Radar UMTS WiFi WiMax WLAN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Amplifier IC General Purpose 10GHz ~ 45GHz 12-MCLP (3x3)
