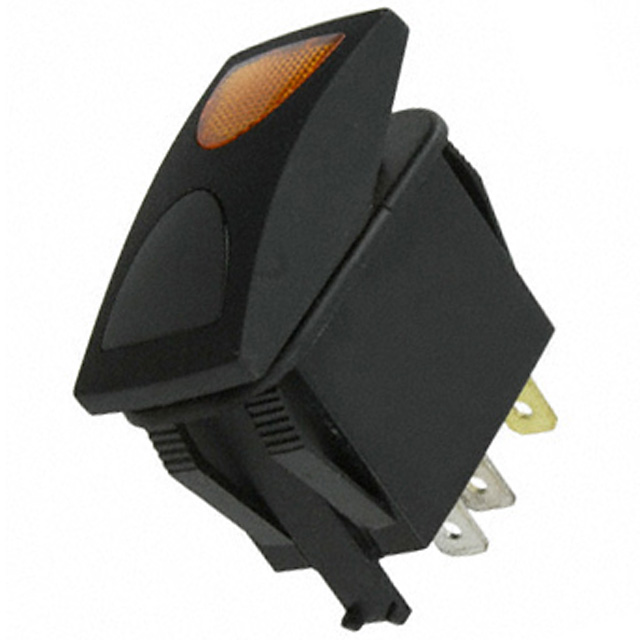

GRB292A201BBNA2
ActiveCW Industries
SWITCH ROCKER SPST 10A 24V
Deep-Dive with AI
Search across all available documentation for this part.
GRB292A201BBNA2
ActiveCW Industries
SWITCH ROCKER SPST 10A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRB292A201BBNA2 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Illumination Type, Color | Amber, LED |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 36.6 mm |
| Panel Cutout Dimensions [y] | 21 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.41 | |
| 10 | $ 10.28 | |||
| 25 | $ 9.85 | |||
| 50 | $ 9.37 | |||
| 100 | $ 8.99 | |||
| 250 | $ 8.45 | |||
| 500 | $ 7.81 | |||
| 1000 | $ 7.54 | |||
Description
General part information
GRB292A Series
Rocker Switch SPST 10A (DC) Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
