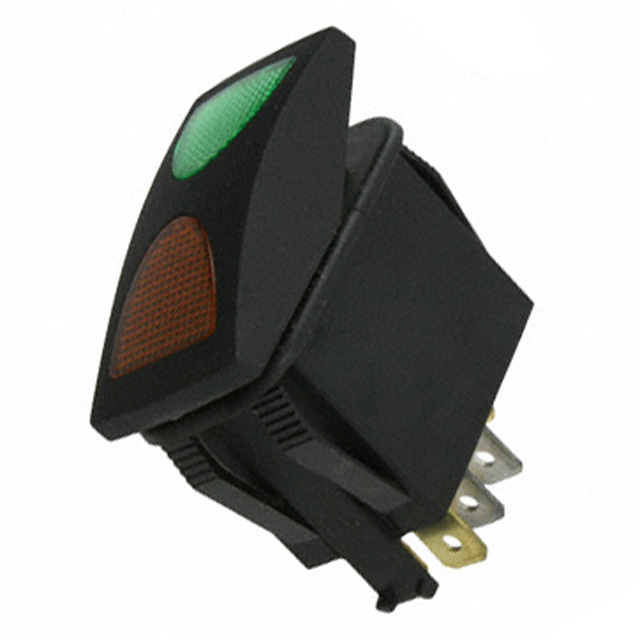

GRB292A301BBAG1
ActiveCW Industries
SWITCH ROCKER SPST 21A 14V
Deep-Dive with AI
Search across all available documentation for this part.
GRB292A301BBAG1
ActiveCW Industries
SWITCH ROCKER SPST 21A 14V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRB292A301BBAG1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 21 A |
| Illumination Type, Color | LED, Amber/Green |
| Ingress Protection | IP66 |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 36.6 mm |
| Panel Cutout Dimensions [y] | 21 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.23 | |
| 10 | $ 11.42 | |||
| 25 | $ 10.77 | |||
| 50 | $ 10.30 | |||
| 100 | $ 9.85 | |||
| 250 | $ 9.28 | |||
Description
General part information
GRB292A Series
Rocker Switch SPST 21A (DC) Panel Mount, Snap-In
