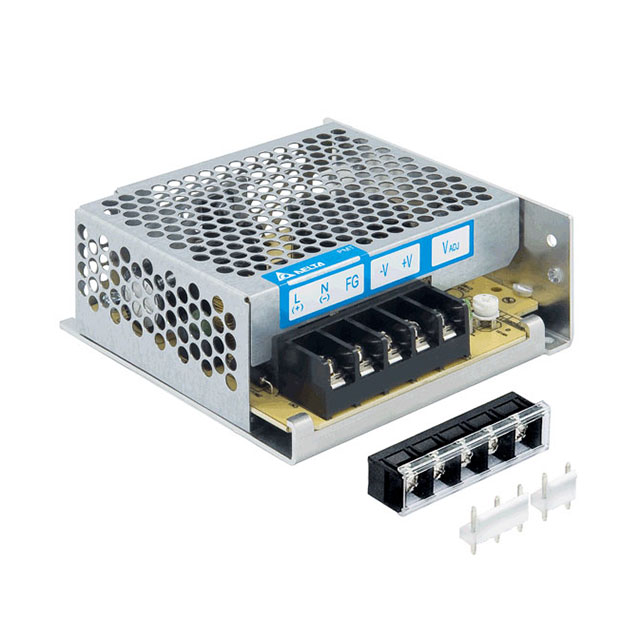

PMT-15V50W1AH

Active

Delta Electronics

AC/DC CONVERTER 15V 50W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 15V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	PMT-15V50W1AH

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, CB, CCC, CE
Current - Output 1	3.4 A
Efficiency	85.5 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	50 W
Size / Dimension [x]	3.86 in
Size / Dimension [x]	98 mm
Size / Dimension [y]	3.86 in
Size / Dimension [y]	98 mm
Size / Dimension [z]	1.5 "
Size / Dimension [z]	38 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

Part	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Power (Watts)	Current - Output 1	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Features	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Isolation	Efficiency
Delta Electronics PMT-15V50W1AA	CB CCC CE cURus TUV	-10 °C	70 °C	ITE (Commercial)	50 W	3.4 A	1	90 VAC	264 VAC	Chassis Mount	Adjustable Output Universal Input	15 V	3.86 in	3.86 in	1.5 "	98 mm	98 mm	38 mm	Enclosed	3000 V	85.5 %
Delta Electronics PMT-15V50W1AG	CB CCC CE cURus TUV	-10 °C	70 °C	ITE (Commercial)	50 W	3.4 A	1	90 VAC	264 VAC	Chassis Mount	Adjustable Output Universal Input	15 V	3.86 in	3.86 in	1.5 "	98 mm	98 mm	38 mm	Enclosed	3000 V	85.5 %
Delta Electronics PMT-15V50W1AH	CB CCC CE cURus TUV	-10 °C	70 °C	ITE (Commercial)	50 W	3.4 A	1	90 VAC	264 VAC	Chassis Mount	Adjustable Output Universal Input	15 V	3.86 in	3.86 in	1.5 "	98 mm	98 mm	38 mm	Enclosed	3000 V	85.5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 21.66
