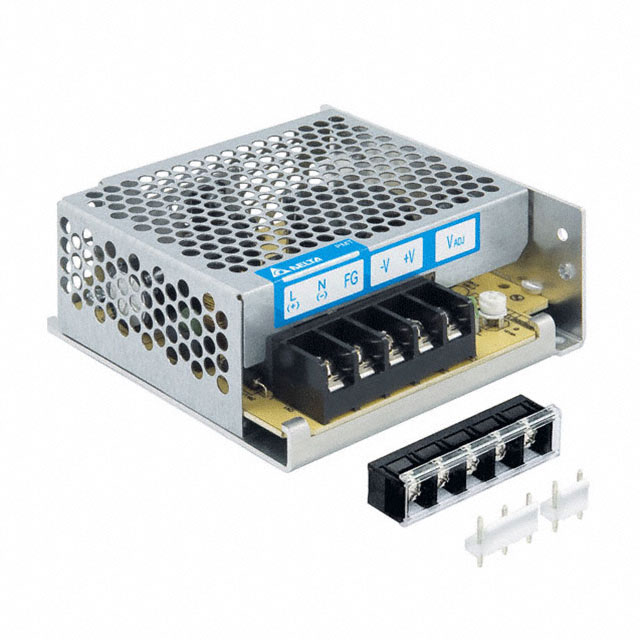

PMT-15V50W1AA - PMT-15V50W1AA

PMT-15V50W1AA

Active
Delta Electronics

AC/DC ENCLOSED POWER SUPPLY (PSU), 13.5V TO 16.5V, ITE, 1 OUTPUTS, 51 W, 15 V, 3.4 A

Deep-Dive with AI

Search across all available documentation for this part.

PMT-15V50W1AA - PMT-15V50W1AA

PMT-15V50W1AA

Active
Delta Electronics

AC/DC ENCLOSED POWER SUPPLY (PSU), 13.5V TO 16.5V, ITE, 1 OUTPUTS, 51 W, 15 V, 3.4 A

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationPMT-15V50W1AA
ApplicationsITE (Commercial)
Approval AgencyTUV, cURus, CB, CCC, CE
Current - Output 13.4 A
Efficiency85.5 %
FeaturesAdjustable Output, Universal Input
Mounting TypeChassis Mount
Number of Outputs1
Operating Temperature [Max]70 °C
Operating Temperature [Min]-10 °C
Power (Watts)50 W
Size / Dimension [x]3.86 in
Size / Dimension [x]98 mm
Size / Dimension [y]3.86 in
Size / Dimension [y]98 mm
Size / Dimension [z]1.5 "
Size / Dimension [z]38 mm
TypeEnclosed
Voltage - Input [Max]264 VAC
Voltage - Input [Min]90 VAC
Voltage - Isolation3000 V
Voltage - Output 115 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 40$ 21.66
NewarkEach 25$ 25.17
50$ 23.60
100$ 22.31
250$ 20.31

Description

General part information

PMT-15 Series

PMT-15V50W1AA is a PMT series of panel mount power supply. It can withstand shock and vibration requirements. In addition to features like overvoltage and overload protections, this panel mount power supply is unlike many other brands in the same price level. This is designed for cost competitive markets without compromising the quality of the components and product specifications. The product has an expected life time of 10 years and this versatile product has three different connector options and can also be converted into L Frame (PML) type of power supplies to satisfy different application needs. It includes overvoltage, overcurrent, overload, short circuit protection. Application includes buildings, machine, process, factory automation, test and measurements, LED lighting.
