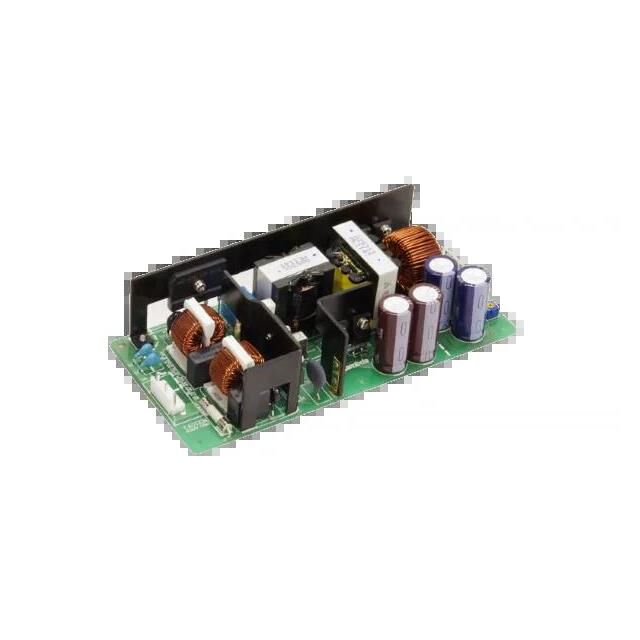

ZWS240BP-24/TL

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 240 W, 85V AC TO 265V AC, ADJUSTABLE, FIXED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSafety Data Sheet EN Declaration of Conformity EN +2

ZWS240BP-24/TL

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 240 W, 85V AC TO 265V AC, ADJUSTABLE, FIXED

Deep-Dive with AI

DocumentsSafety Data Sheet EN Declaration of Conformity EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZWS240BP-24/TL

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	10 A
Efficiency	88 %
Features	Load Sharing, Universal Input, PFC, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	240 W
Size / Dimension [x]	7.09 in
Size / Dimension [x]	180 mm
Size / Dimension [y]	84 mm
Size / Dimension [y]	3.31 "
Size / Dimension [z]	1.65 "
Size / Dimension [z]	42 mm
Type	Open Frame
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

ZWS240 Series

Switching Power Supplies 24Vout 10A 240W

Part	Number of Outputs	Power (Watts)	Current - Output 1	Type	Voltage - Output 1	Efficiency	Features	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Applications	Mounting Type
TDK-LAMBDA ZWS240BP-24/TA	1	240 W	10 A	Enclosed	24 V	88 %	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	CE	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	85 VAC	265 VAC	-10 °C	70 °C	3000 V	ITE (Commercial)	Chassis Mount
TDK-LAMBDA ZWS240RC-24	1	240 W	10 A	Open Frame	24 V	90 %	Adjustable Output Universal Input	CE	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	85 VAC	265 VAC	-10 °C	70 °C	3000 V	ITE (Commercial)	Chassis Mount
TDK-LAMBDA ZWS240BP-48/T	1	240 W	5 A	Open Frame	48 V	88 %	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	CE	1.65 "	8.74 "	95 mm	222 mm	42 mm	3.74 "	85 VAC	265 VAC	-10 °C	70 °C	3000 V	ITE (Commercial)	Chassis Mount
TDK-LAMBDA ZWS240BP-36/A	1	240 W	6.7 A	Enclosed	36 V	88 %	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	CE	1.65 "	8.74 "	95 mm	222 mm	42 mm	3.74 "	85 VAC	265 VAC	-10 °C	70 °C	3000 V	ITE (Commercial)	Chassis Mount
TDK-LAMBDA ZWS240BP-48/TL	1	240 W	5 A	Open Frame	48 V	88 %	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	CE	1.65 "	8.74 "	95 mm	222 mm	42 mm	3.74 "	85 VAC	265 VAC	-10 °C	70 °C	3000 V	ITE (Commercial)	Chassis Mount
TDK-LAMBDA ZWS240BP-36/T	1	240 W	6.7 A	Open Frame	36 V	88 %	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	CE	1.65 "	8.74 "	95 mm	222 mm	42 mm	3.74 "	85 VAC	265 VAC	-10 °C	70 °C	3000 V	ITE (Commercial)	Chassis Mount
TDK-LAMBDA ZWS240BP-36/TL	1	240 W	6.7 A	Open Frame	36 V	88 %	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	CE	1.65 "	8.74 "	95 mm	222 mm	42 mm	3.74 "	85 VAC	265 VAC	-10 °C	70 °C	3000 V	ITE (Commercial)	Chassis Mount
TDK-LAMBDA ZWS240BP-48	1	240 W	5 A	Open Frame	48 V	88 %	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	CE	1.65 "	8.74 "	95 mm	222 mm	42 mm	3.74 "	85 VAC	265 VAC	-10 °C	70 °C	3000 V	ITE (Commercial)	Chassis Mount
TDK-LAMBDA ZWS240BP-48/L	1	240 W	5 A	Open Frame	48 V	88 %	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	CE	1.65 "	8.74 "	95 mm	222 mm	42 mm	3.74 "	85 VAC	265 VAC	-10 °C	70 °C	3000 V	ITE (Commercial)	Chassis Mount
TDK-LAMBDA ZWS240BP-24/TL	1	240 W	10 A	Open Frame	24 V	88 %	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	CE	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	85 VAC	265 VAC	-10 °C	70 °C	3000 V	ITE (Commercial)	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 219.33
Newark	Each	1	$ 219.33
		10	$ 202.72
		25	$ 188.32
		50	$ 178.35

Description

General part information

ZWS240 Series

Switching Power Supplies 24Vout 10A 240W

Documents

Technical documentation and resources

ZWS240BP-24/TL

Deep-Dive with AI

ZWS240BP-24/TL

Deep-Dive with AI

Technical Specifications

ZWS240 Series

Pricing

Description

ZWS240 Series

Documents

Safety Data Sheet EN

Declaration of Conformity EN

Technical Data Sheet EN

User Manual EN

ZWS240 Series
