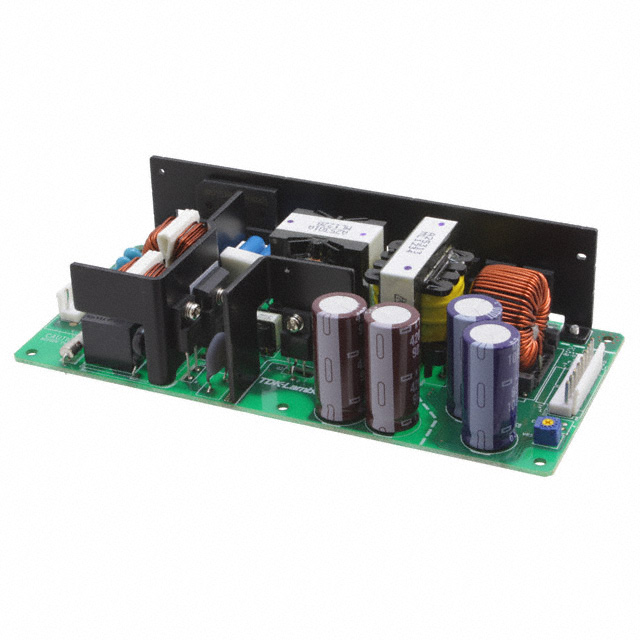

ZWS240BP-48
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 240 W, 85V AC TO 265V AC, ADJUSTABLE, FIXED, 48 V
Deep-Dive with AI
Search across all available documentation for this part.
ZWS240BP-48
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 240 W, 85V AC TO 265V AC, ADJUSTABLE, FIXED, 48 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZWS240BP-48 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 5 A |
| Efficiency | 88 % |
| Features | Load Sharing, Universal Input, PFC, Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 8.74 " |
| Size / Dimension [x] | 222 mm |
| Size / Dimension [y] | 95 mm |
| Size / Dimension [y] | 3.74 " |
| Size / Dimension [z] | 1.65 " |
| Size / Dimension [z] | 42 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ZWS240 Series
Switching Power Supplies 24Vout 10A 240W
