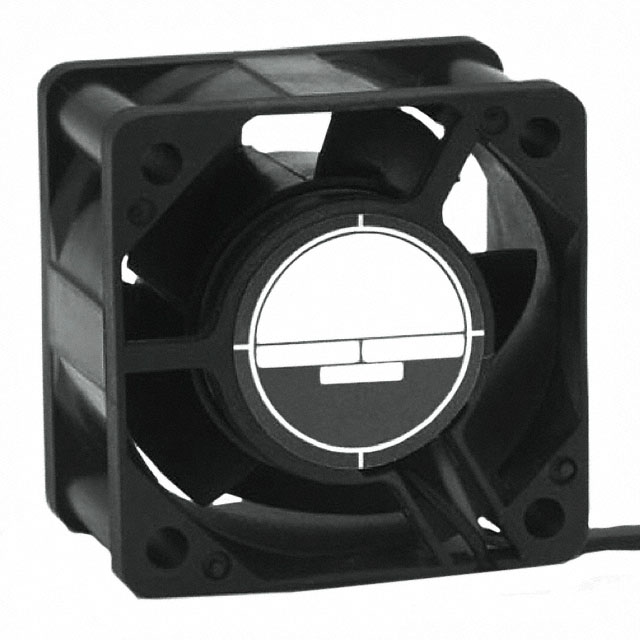

OD4028-24HB

Active

Orion Fans

DC AXIAL FAN, 24 V, SQUARE, 40 MM, 28 MM, BALL BEARING, 12 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnhanced Product Overview EN Technical Data Sheet EN +1

OD4028-24HB

Active

Orion Fans

DC AXIAL FAN, 24 V, SQUARE, 40 MM, 28 MM, BALL BEARING, 12 CFM

Deep-Dive with AI

DocumentsEnhanced Product Overview EN Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD4028-24HB

Air Flow	0.336 mł/min
Air Flow	12 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	37 dB
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	8800 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.32 in H2O
Static Pressure	79.7 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27 VDC
Voltage Range [Min]	10 VDC
Width [y]	28 mm

OD4028 Series

Part	Noise	Voltage Range [Max]	Voltage Range [Min]	RPM	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Static Pressure	Static Pressure	Fan Type	Material - Frame	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Air Flow	Air Flow	Termination	Bearing Type	Material - Blade	Approval Agency	Voltage - Rated	Width [y]	Features	Current Rating (Amps)
Orion Fans OD4028-24HB	37 dB	27 VDC	10 VDC	8800 RPM	80 C	80 °C	-20 °C	-20 C	60000 Hrs	0.32 in H2O	79.7 Pa	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm	0.336 mł/min	12 CFM	2 Wire Leads	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	24 VDC	28 mm
Orion Fans OD4028-12HBXC10A	57 dB	13.2 VDC	10.8 VDC	16000 RPM	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs	1.6 in H2O	398.6 Pa	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm	0.742 m³/min	26.5 CFM	4 Wire Leads	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	12 VDC	28 mm	Auto Restart PWM Control Speed Sensor (Tach)	800 mA
Orion Fans OD4028-12HSS02A	37 dB	14 V	7 V	8800 RPM	50 °C	50 °C	-10 °C	-10 °C	30000 Hrs	0.32 in H2O	79.7 Pa	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm	0.336 mł/min	12 CFM	3 Wire Leads	Sealed Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	12 VDC	28 mm	Locked Rotor Sensor	0.2 A
Orion Fans OD4028-12MS	35 dB	14 V	7 V	8000 RPM	50 °C	50 °C	-10 °C	-10 °C	30000 Hrs	0.25 in H2O	62.3 Pa	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm	0.308 mł/min	11 CFM	2 Wire Leads	Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	12 VDC	28 mm		0.18 A
Orion Fans OD4028-12LB	25 dB(A)	14 V	7 V	5000 RPM	80 C	80 °C	-20 °C	-20 C	60000 Hrs	0.1 in H2O	24.9 Pa	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm	0.196 mł/min	7 CFM	2 Wire Leads	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	12 VDC	28 mm		120 mA
Orion Fans OD4028-12LBXC												Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm			2 Wire Leads	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	12 VDC	28 mm	Auto Restart
Orion Fans OD4028-12MBXC02A												Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm			3 Wire Leads	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	12 VDC	28 mm	Auto Restart Locked Rotor Sensor
Orion Fans OD4028-12MB01A	35 dB	14 V	7 V	8000 RPM	80 C	80 °C	-20 °C	-20 C	60000 Hrs	0.25 in H2O	62.3 Pa	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm			3 Wire Leads	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	12 VDC	28 mm	Speed Sensor (Tach)	0.18 A
Orion Fans OD4028-12HSS01A	37 dB	14 V	7 V	8800 RPM	50 °C	50 °C	-10 °C	-10 °C	30000 Hrs	0.32 in H2O	79.7 Pa	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm	0.336 mł/min	12 CFM	3 Wire Leads	Sealed Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	12 VDC	28 mm	Speed Sensor (Tach)	0.2 A
Orion Fans OD4028-12HB01A	37 dB	14 V	7 V	8800 RPM	80 C	80 °C	-20 °C	-20 C	60000 Hrs	0.32 in H2O	79.7 Pa	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	40 mm	Square	40 mm	0.336 mł/min	12 CFM	3 Wire Leads	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	cURus TUV	12 VDC	28 mm	Speed Sensor (Tach)	0.2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 10.01
Newark	Each	1	$ 15.36
		1000	$ 14.08

Description

General part information

OD4028 Series

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 12.0 CFM (0.336m³/min) 2 Wire Leads
