172-E37-203R001
ActiveMH Connectors

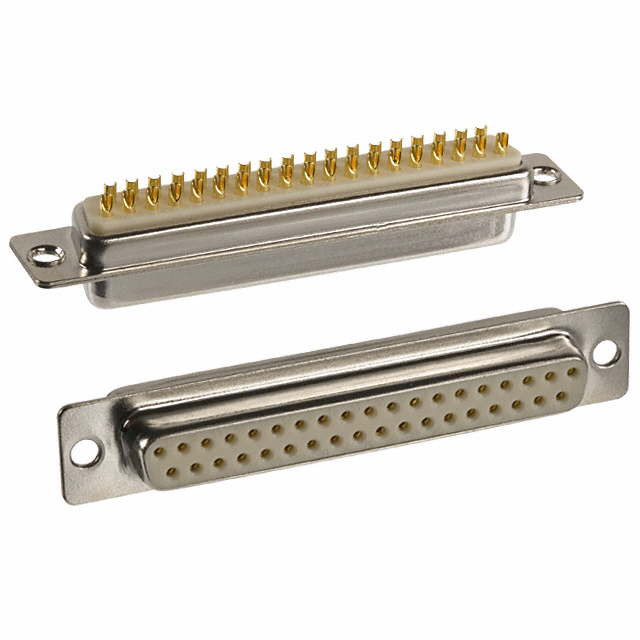

D SUB CONNECTOR, DB37, STANDARD, RECEPTACLE, 172-E M SERIES, 37 CONTACTS, DC, SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
172-E37-203R001
ActiveMH Connectors
D SUB CONNECTOR, DB37, STANDARD, RECEPTACLE, 172-E M SERIES, 37 CONTACTS, DC, SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 172-E37-203R001 |
|---|---|
| Color | White |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C) |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
172-E37 Series
The 172 series high reliability Dip Solder D-sub Connectors with screw machine contacts. It has brass male and female pin contacts with gold flash plating on entire contact, glass-filled thermoplastic insulator and nickel-plated, steel shell.
