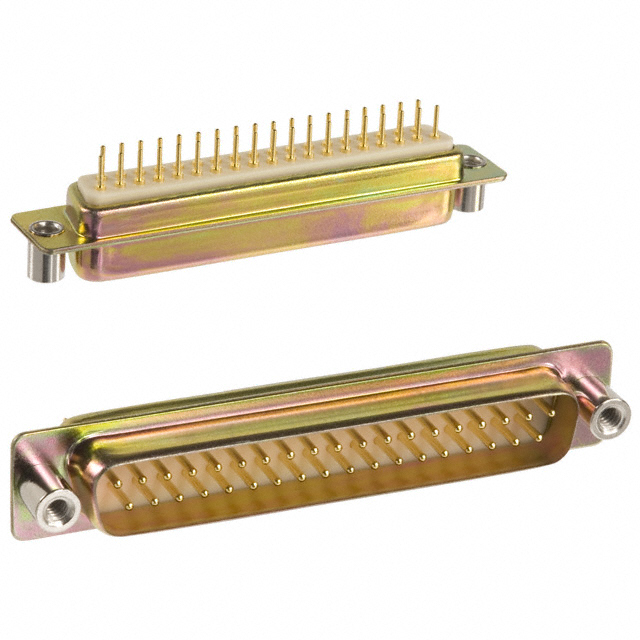

172-E37-111-031

Obsolete

MH Connectors

CONN D-SUB PLUG 37P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference Guide Datasheet

172-E37-111-031

Obsolete

MH Connectors

CONN D-SUB PLUG 37P PNL MNT SLDR

Deep-Dive with AI

DocumentsBackshell Reference Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172-E37-111-031

Color	White
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	37
Number of Rows	2
Shell Material, Finish	Steel, Yellow Chromate Plated
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

172-E37 Series

Part	Number of Positions	Color	Mounting Type	Contact Material	Flange Feature	Connector Type	Current Rating (Amps)	Contact Type	Shell Material, Finish	Number of Rows	Contact Finish	Shell Size, Connector Layout	Contact Finish Thickness	Connector Style	Material Flammability Rating	Termination	Dielectric Material	Features	Wire Gauge [Min]	Wire Gauge [Max]
MH Connectors 172-E37-211R011	37	White	Panel Mount Through Hole	Brass	4-40 Board Side	Receptacle Female Sockets	5 A	Signal	Steel Yellow Chromate Plated	2	Gold	4 (DC C)	Flash	D-Sub	UL94 V-0	Solder	Polyamide (PA6T) Nylon 6T
MH Connectors 172-E37-102-021	37	White		Brass	Cable Side	Male Pins Plug	5 A	Signal		2	Gold	4 (DC C)	Flash	D-Sub	UL94 V-0		Polybutylene Terephthalate (PBT)	Grounding Indents
MH Connectors 172-E37-111-031	37	White	Panel Mount Through Hole		4-40	Male Pins Plug	5 A	Signal	Steel Yellow Chromate Plated	2	Gold	4 (DC C)	Flash	D-Sub	UL94 V-0	Solder	Polybutylene Terephthalate (PBT) Glass Filled
MH Connectors 172-E37-101R911	37	White		Brass	Cable Side (4-40) Mating Side Female Screwlock (4-40)	Male Pins Plug	5 A	Signal	Steel Yellow Chromate Plated	2	Gold	4 (DC C)	Flash	D-Sub	UL94 V-0		Polybutylene Terephthalate (PBT)		20 AWG	26 AWG
MH Connectors 172-E37-112-011	37	White	Panel Mount Through Hole		4-40 Board Side	Male Pins Plug	5 A	Signal		2	Gold	4 (DC C)	Flash	D-Sub	UL94 V-0	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents
MH Connectors 172-E37-102R001	37	White		Brass	Housing/Shell (Unthreaded)	Male Pins Plug	5 A	Signal		2	Gold	4 (DC C)	Flash	D-Sub	UL94 V-0		Polybutylene Terephthalate (PBT)	Grounding Indents	20 AWG	26 AWG
MH Connectors 172-E37-102R031	37	White		Brass	4-40	Male Pins Plug	5 A	Signal		2	Gold	4 (DC C)	Flash	D-Sub	UL94 V-0		Polybutylene Terephthalate (PBT)	Grounding Indents	20 AWG	26 AWG
MH Connectors 172-E37-202R021	37	White		Brass	Cable Side	Receptacle Female Sockets	5 A	Signal		2	Gold	4 (DC C)	Flash	D-Sub	UL94 V-0		Polybutylene Terephthalate (PBT)		20 AWG	26 AWG
MH Connectors 172-E37-101-911	37	White		Brass	Cable Side (4-40) Mating Side Female Screwlock (4-40)	Male Pins Plug	5 A	Signal	Steel Yellow Chromate Plated	2	Gold	4 (DC C)	Flash	D-Sub	UL94 V-0		Polybutylene Terephthalate (PBT)
MH Connectors 172-E37-203R001	37	White		Brass	Housing/Shell (Unthreaded)	Receptacle Female Sockets	5 A	Signal	Nickel Plated Steel	2	Gold	4 (DC C)	Flash	D-Sub	UL94 V-0		Polybutylene Terephthalate (PBT)		20 AWG	26 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

172-E37 Series

37 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Backshell Reference Guide

Datasheet
