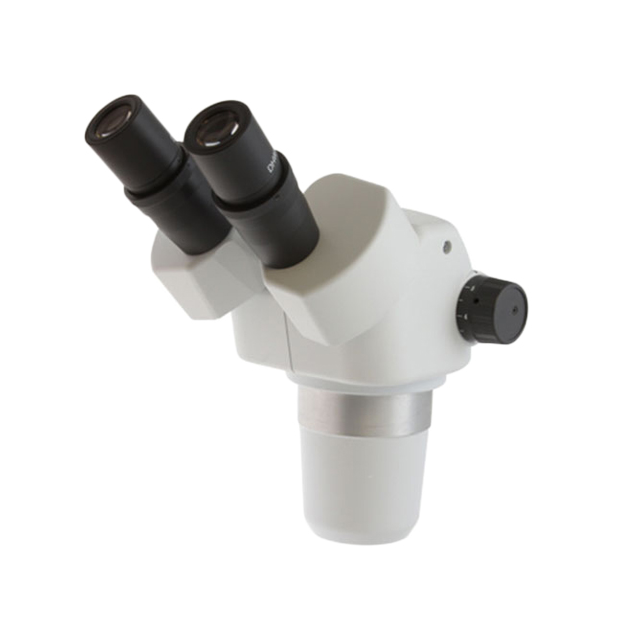

SPZ-50E

Active

Aven Tools

MICROSCOPE BODY SZ, BINOUCLAR 6.

Search across all available documentation for this part.

Active

Aven Tools

MICROSCOPE BODY SZ, BINOUCLAR 6.

Technical Specifications

Parameters and characteristics for this part

Specification	SPZ-50E

Field of View [Max]	34.29 mm
Field of View [Max]	1.35 in
Field of View [Min]	3.56 mm
Field of View [Min]	0.14 in
Includes	Eyepiece 2 ea, Dust Cover, Manual
Magnification Range [Max]	50 x
Magnification Range [Min]	6.75 x
Type	Microscope, Stereo Zoom (Binocular)
Working Distance [Max]	240 mm
Working Distance [Max]	9.45 in
Working Distance [Min]	1.61 in
Working Distance [Min]	41 mm

Part	Field of View [Min]	Field of View [Max]	Field of View [Max]	Field of View [Min]	Working Distance	Working Distance	Illumination	Magnification Range [Min]	Magnification Range [Max]	Type	Includes	Working Distance [Max]	Working Distance [Min]	Working Distance [Max]	Working Distance [Min]
Aven Tools SPZ50-209-550-PCL	3.6 mm	34.3 mm	1.35 in	0.14 in	4.25 in	107.95 mm	LED	6.7 x	50 x	Microscope Stereo Zoom (Binocular)	Cover Eyepiece Manual
Aven Tools SPZ50-209-536	3.6 mm	34.3 mm	1.35 in	0.14 in	4.25 in	107.95 mm	LED	6.7 x	50 x	Microscope Stereo Zoom (Binocular)	Cover Eyepiece Manual
Aven Tools SPZ50-209-525	3.6 mm	34.3 mm	1.35 in	0.14 in	4.25 in	107.95 mm	LED	6.7 x	50 x	Microscope Stereo Zoom (Binocular)	Cover Eyepiece Manual
Aven Tools SPZ-50E	3.56 mm	34.29 mm	1.35 in	0.14 in				6.75 x	50 x	Microscope Stereo Zoom (Binocular)	Dust Cover Eyepiece 2 ea Manual	240 mm	1.61 in	9.45 in	41 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2005.31
Newark	Each	1	$ 2000.00

General part information

Microscope, Stereo Zoom (Binocular) 6.75x ~ 50x
