SPZ50-209-525

Obsolete

Aven Tools

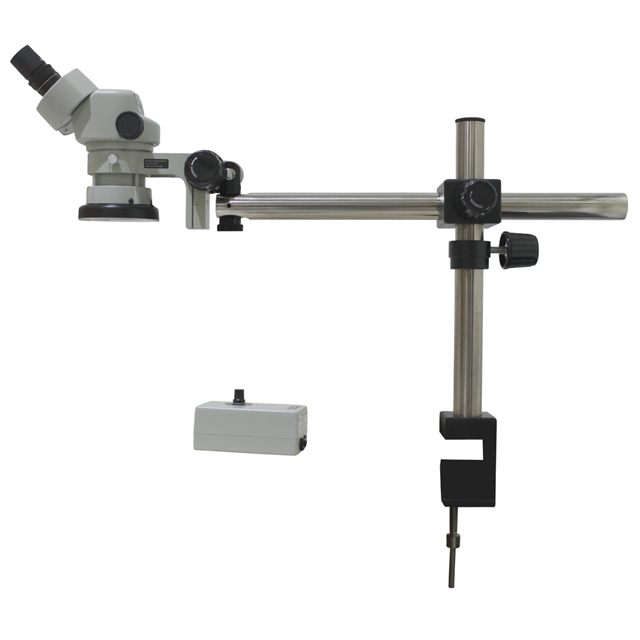

SPZ-50 STEREO ZOOM MICROSCOPE [6

Search across all available documentation for this part.

Obsolete

Aven Tools

SPZ-50 STEREO ZOOM MICROSCOPE [6

Technical Specifications

Parameters and characteristics for this part

Specification	SPZ50-209-525

Field of View [Max]	34.3 mm
Field of View [Max]	1.35 in
Field of View [Min]	3.6 mm
Field of View [Min]	0.14 in
Illumination	LED
Includes	Manual, Cover, Eyepiece
Magnification Range [Max]	50 x
Magnification Range [Min]	6.7 x
Type	Microscope, Stereo Zoom (Binocular)
Working Distance	4.25 in
Working Distance	107.95 mm

Part	Field of View [Min]	Field of View [Max]	Field of View [Max]	Field of View [Min]	Working Distance	Working Distance	Illumination	Magnification Range [Min]	Magnification Range [Max]	Type	Includes	Working Distance [Max]	Working Distance [Min]	Working Distance [Max]	Working Distance [Min]
Aven Tools SPZ50-209-550-PCL	3.6 mm	34.3 mm	1.35 in	0.14 in	4.25 in	107.95 mm	LED	6.7 x	50 x	Microscope Stereo Zoom (Binocular)	Cover Eyepiece Manual
Aven Tools SPZ50-209-536	3.6 mm	34.3 mm	1.35 in	0.14 in	4.25 in	107.95 mm	LED	6.7 x	50 x	Microscope Stereo Zoom (Binocular)	Cover Eyepiece Manual
Aven Tools SPZ50-209-525	3.6 mm	34.3 mm	1.35 in	0.14 in	4.25 in	107.95 mm	LED	6.7 x	50 x	Microscope Stereo Zoom (Binocular)	Cover Eyepiece Manual
Aven Tools SPZ-50E	3.56 mm	34.29 mm	1.35 in	0.14 in				6.75 x	50 x	Microscope Stereo Zoom (Binocular)	Dust Cover Eyepiece 2 ea Manual	240 mm	1.61 in	9.45 in	41 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Microscope, Stereo Zoom (Binocular) 6.7x ~ 50x LED
