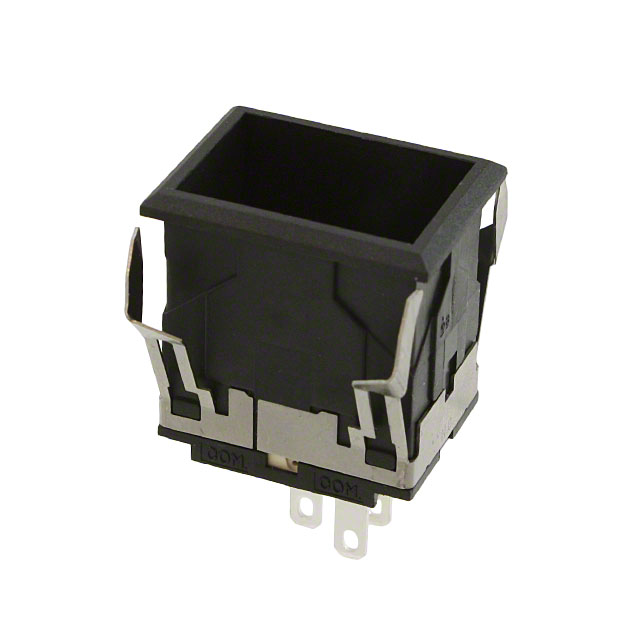

LB15RKW01 - LB15RKW01

LB15RKW01

Active
NKK Switches

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-(ON)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
LB15RKW01 - LB15RKW01

LB15RKW01

Active
NKK Switches

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-(ON)

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationLB15RKW01
Actuator MarkingNo Marking
Actuator TypePlunger for Cap
CircuitSPDT
Current Rating (Amps)3 A
Electrical Life100000 Cycles
Mechanical Life1000000 Cycles
Mounting TypePanel Mount, Snap-In
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
Panel Cutout Dimensions [x]22.4 mm
Panel Cutout Dimensions [y]16.2 mm
Switch FunctionOn-Mom
Termination Style0.11 in
Termination StyleQuick Connect, Solder
Termination Style2.8 mm
TypeStandard
Voltage Rating - AC125 V
Voltage Rating - DC30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 10.98
10$ 9.90
25$ 9.48
50$ 9.02
100$ 8.65
250$ 8.13
500$ 7.51
1000$ 7.25
NewarkEach 1$ 20.13
5$ 19.12
10$ 17.72
25$ 16.17
50$ 13.99
100$ 13.06
250$ 11.89
TMEN/A 1$ 10.45

Description

General part information

lb-snap-in Series

Pushbutton Switch SPDT Standard Panel Mount, Snap-In
