LB16CGG01

Active

NKK Switches

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 0.1A/28VAC; 0.1A/28VDC; ON-ON

Search across all available documentation for this part.

Active

NKK Switches

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 0.1A/28VAC; 0.1A/28VDC; ON-ON

Technical Specifications

Parameters and characteristics for this part

Specification	LB16CGG01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Mechanical Life	Voltage Rating - DC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Marking	Actuator Type	Switch Function	Panel Cutout Dimensions [diameter]	Electrical Life	Type	Termination Style	Termination Style	Termination Style	Circuit	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK Switches LB16CGG01	200000 Cycles	28 V	Panel Mount Snap-In	70 °C	-25 °C	0.4 VA	No Marking	Plunger for Cap	On-On	22 mm	100000 Cycles	Standard	0.11 in	Quick Connect Solder	2.8 mm	SPDT	28 V
NKK Switches LB15RKW01	1000000 Cycles	30 V	Panel Mount Snap-In	70 °C	-25 °C	3 A	No Marking	Plunger for Cap	On-Mom		100000 Cycles	Standard	0.11 in	Quick Connect Solder	2.8 mm	SPDT	125 V	22.4 mm	16.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

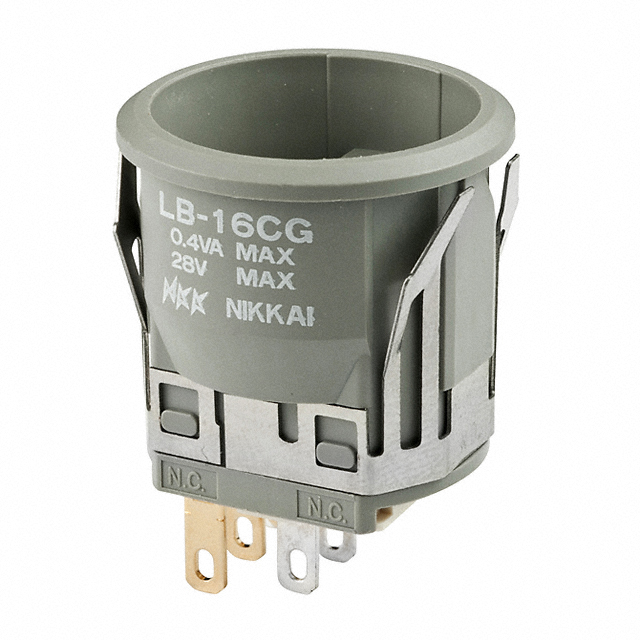

Pushbutton Switch SPDT Standard Panel Mount, Snap-In
