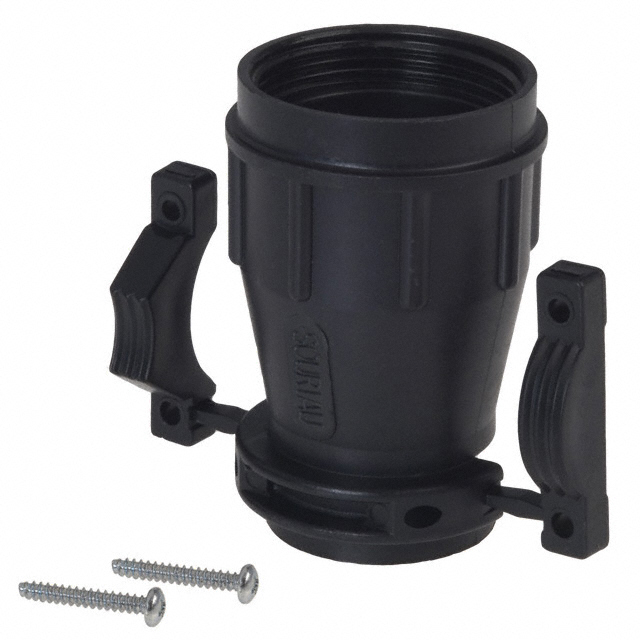

UTG18-AC
ActiveSouriau-Sunbank by Eaton
CONN BCKSH W CLP SZ18 1 1/16-18
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UTG18-AC
ActiveSouriau-Sunbank by Eaton
CONN BCKSH W CLP SZ18 1 1/16-18
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UTG18-AC |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [Max] [custom] | 0.748 in |
| Cable Opening [Max] [custom] | 19 mm |
| Cable Opening [Min] [custom] | 5 mm |
| Cable Opening [Min] [custom] | 0.197 in |
| Color | Black |
| Diameter - Outside [diameter] | 33.3 mm |
| Diameter - Outside [diameter] | 1.311 in |
| Features | Clamp Screws |
| For Use With/Related Products | Trim Trio® UTG and UTP Connectors |
| Includes | 2 pc Cable Clamp, 1 Backshell, 2 Screws |
| Material | Thermoplastic |
| Shell Size - Insert | 18 |
| Thread Size | UNEF |
| Thread Size | 18, |
| Type | Backshell, Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 8.39 | |
| 10 | $ 7.55 | |||
| 25 | $ 7.11 | |||
| 50 | $ 6.93 | |||
| 100 | $ 6.75 | |||
| 250 | $ 6.02 | |||
| 500 | $ 5.65 | |||
| 1000 | $ 5.00 | |||
Description
General part information
UTG18 Series
Black Connector Backshell, Cable Clamp 1 1/16-18 UNEF 18
