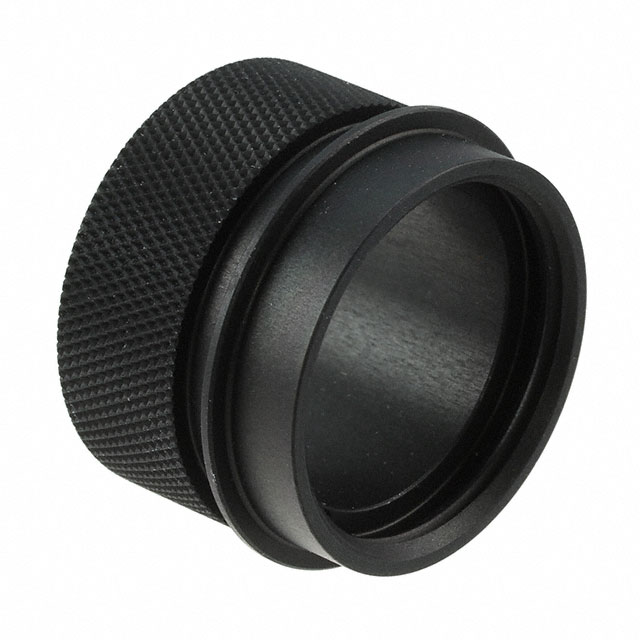

UTG18AD

Active

Souriau-Sunbank by Eaton

CONN BACKSH ADPT SZ18 1 1/16-18

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN BACKSH ADPT SZ18 1 1/16-18

Technical Specifications

Parameters and characteristics for this part

Specification	UTG18AD

Cable Exit	180 °
Color	Black
Diameter - Outside [diameter]	33.3 mm
Diameter - Outside [diameter]	1.311 in
For Use With/Related Products	Trim Trio® UTG and UTP Connectors
Material	Metal
Plating	Anodized
Shell Size - Insert	18
Thread Size	UNEF
Thread Size	18,
Type	Backshell, Heat Shrink Adapter

Part	Shell Size - Insert	For Use With/Related Products	Plating	Color	Type	Thread Size	Thread Size	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Cable Exit	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Includes	Features	Cable Opening [Max] [custom]	Ingress Protection
Souriau-Sunbank by Eaton UTG18AD	18	Trim Trio® UTG and UTP Connectors	Anodized	Black	Backshell Heat Shrink Adapter	UNEF	18	33.3 mm	1.311 in	Metal	180 °
Souriau-Sunbank by Eaton UTG18-AC	18	Trim Trio® UTG and UTP Connectors		Black	Backshell Cable Clamp	UNEF	18	33.3 mm	1.311 in	Thermoplastic	180 °	5 mm	0.197 in	0.748 in	19 mm	1 Backshell 2 pc Cable Clamp 2 Screws	Clamp Screws
Souriau-Sunbank by Eaton UTG18PG	18	Trim Trio® UTG and UTP Connectors		Black	Backshell Cable Clamp	PG16		33.3 mm	1.311 in	Thermoplastic	180 °	8 mm	0.315 in	0.807 in		1 Backshell 1 Cable Clamp 1 Cable Gland 2 Screws 2 Washers	Cable Gland Clamp Screws Washers	20.5 mm	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 22.73

General part information

Black Connector Backshell, Heat Shrink Adapter 1 1/16-18 UNEF 18
