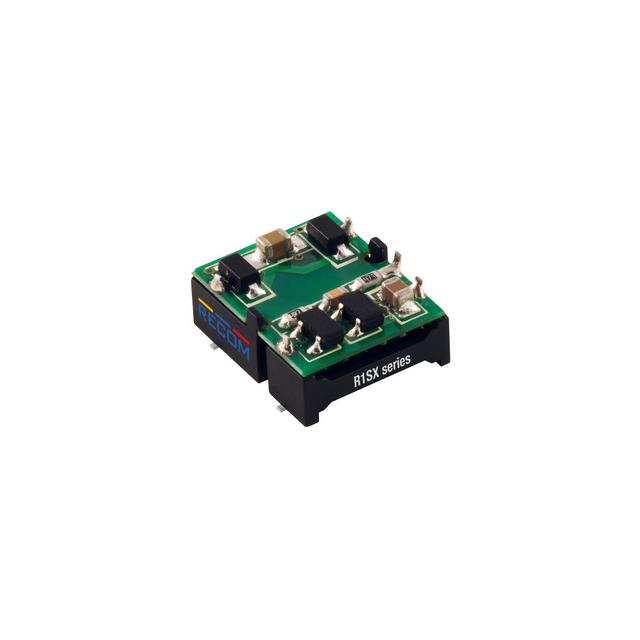

R1SX-1205/H-R

Active

RECOM Power

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Search across all available documentation for this part.

Active

RECOM Power

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Technical Specifications

Parameters and characteristics for this part

Isolated DC/DC Converters - SMD 1W 12Vin 05Vout 200mA Open Frame

Part	Number of Outputs	Package / Case	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Current - Output (Max) [Max]	Applications	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Type	Efficiency	Mounting Type	Voltage - Output 1
RECOM Power R1SX-1205-R	1	8-SMD Module 5 Leads	1000 V	0.5 in	0.43 in	0.23 "	5.8 mm	10.8 mm	12.8 mm	CB cURus	200 mA	ITE (Commercial)	13.2 V	100 °C	-40 °C	10.8 V	Isolated Module	79 %	Surface Mount	5 V
RECOM Power R1SX-1205/H-R	1	8-SMD Module 5 Leads	3000 V	0.5 in	0.43 in	0.23 "	5.8 mm	10.8 mm	12.8 mm	CB cURus	200 mA	ITE (Commercial)	13.2 V	100 °C	-40 °C	10.8 V	Isolated Module	79 %	Surface Mount	5 V
RECOM Power R1SX-3.305-R	1	8-SMD Module 5 Leads	1000 V	0.5 in	0.43 in	0.23 "	5.8 mm	10.8 mm	12.8 mm	CB cURus	200 mA	ITE (Commercial)	3.63 V	100 °C	-40 °C	2.97 V	Isolated Module	78 %	Surface Mount	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - SMD 1W 12Vin 05Vout 200mA Open Frame
