R1SX-3.305-R
ActiveRECOM Power

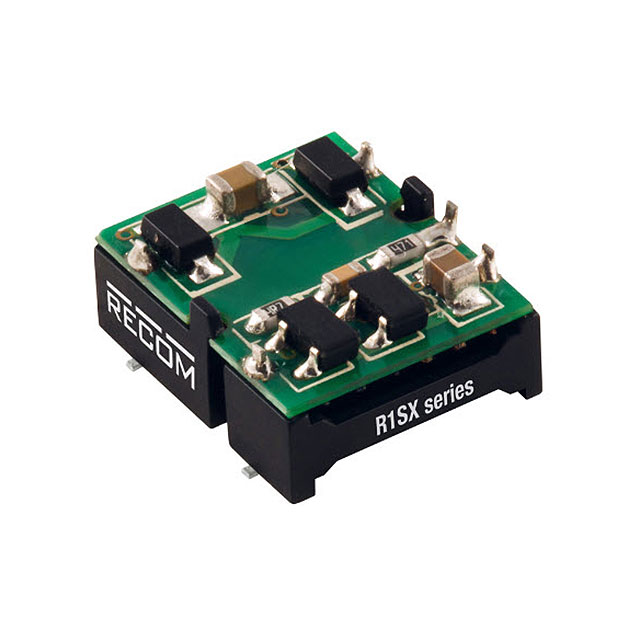

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, DIP, 1:1, 1 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
R1SX-3.305-R
ActiveRECOM Power
ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, DIP, 1:1, 1 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R1SX-3.305-R |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 78 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.8 mm |
| Size / Dimension [y] | 0.43 in |
| Size / Dimension [y] | 10.8 mm |
| Size / Dimension [z] | 0.23 " |
| Size / Dimension [z] | 5.8 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 3.63 V |
| Voltage - Input (Min) [Min] | 2.97 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
R1SX-3.305 Series
Isolated DC/DC Converters - SMD 1W 12Vin 05Vout 200mA Open Frame
| Part | Number of Outputs | Package / Case | Voltage - Isolation | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Approval Agency | Current - Output (Max) [Max] | Applications | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Type | Efficiency | Mounting Type | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power | 1 | 8-SMD Module 5 Leads | 1000 V | 0.5 in | 0.43 in | 0.23 " | 5.8 mm | 10.8 mm | 12.8 mm | CB cURus | 200 mA | ITE (Commercial) | 13.2 V | 100 °C | -40 °C | 10.8 V | Isolated Module | 79 % | Surface Mount | 5 V |
RECOM Power | 1 | 8-SMD Module 5 Leads | 3000 V | 0.5 in | 0.43 in | 0.23 " | 5.8 mm | 10.8 mm | 12.8 mm | CB cURus | 200 mA | ITE (Commercial) | 13.2 V | 100 °C | -40 °C | 10.8 V | Isolated Module | 79 % | Surface Mount | 5 V |
RECOM Power | 1 | 8-SMD Module 5 Leads | 1000 V | 0.5 in | 0.43 in | 0.23 " | 5.8 mm | 10.8 mm | 12.8 mm | CB cURus | 200 mA | ITE (Commercial) | 3.63 V | 100 °C | -40 °C | 2.97 V | Isolated Module | 78 % | Surface Mount | 5 V |
