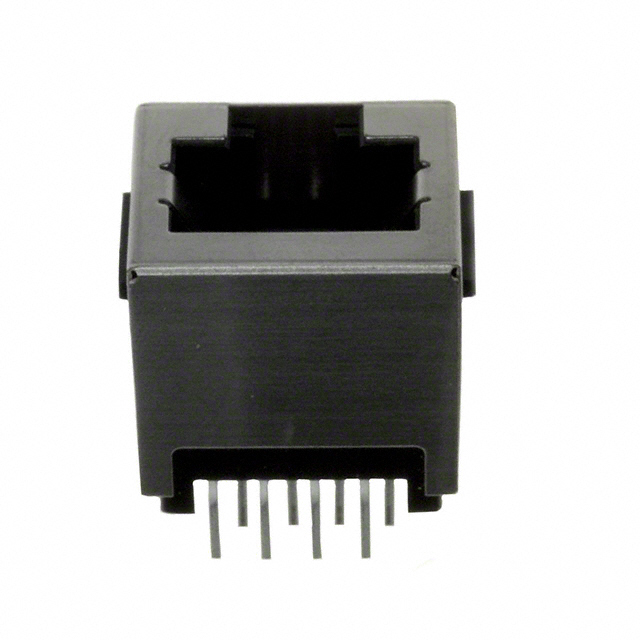

RJE06-188-1120
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C VERT SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
RJE06-188-1120
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C VERT SHIELDED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJE06-188-1120 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.152 Ám |
| Contact Finish Thickness | 6 Áin |
| Contact Material | Phosphor Bronze |
| Features | Board Lock, Panel Stops |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Vertical |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.58 | |
| 10 | $ 2.25 | |||
| 25 | $ 2.15 | |||
| 40 | $ 2.10 | |||
| 90 | $ 2.01 | |||
| 270 | $ 1.82 | |||
| 450 | $ 1.67 | |||
| 990 | $ 1.43 | |||
| 2430 | $ 1.34 | |||
Description
General part information
RJE06188 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded
