RJE061881420

Active

Amphenol ICC (Commercial Products)

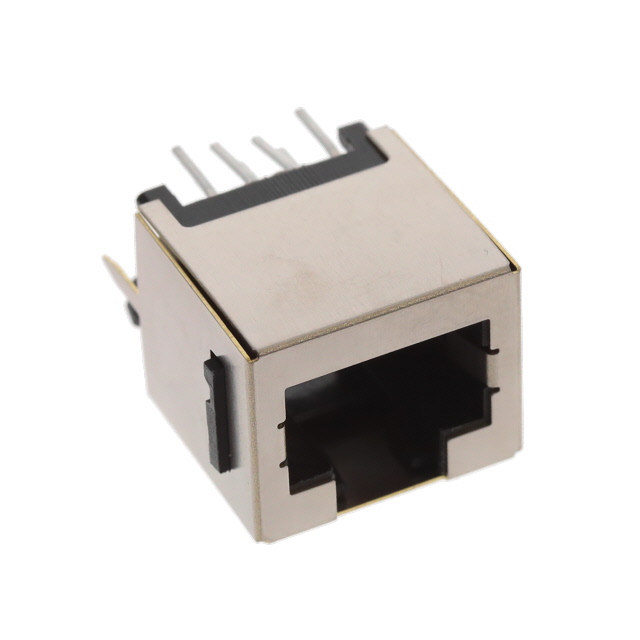

CONN MOD JACK 8P8C VERT SHIELDED

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C VERT SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	RJE061881420

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Board Lock, Panel Stops
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Orientation	Vertical
Shielding	Shielded
Tab Direction	User Selectable
Termination	Solder

Part	Number of Rows	Termination	Shielding	Number of Ports	Contact Finish	LED Color	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Tab Direction	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Material	Connector Type	Orientation	Number of Positions/Contacts	Mounting Type
Amphenol ICC (Commercial Products) RJE061881420	1	Solder	Shielded	1	Gold	Does Not Contain LED	Thermoplastic	50 µin	1.27 µm	User Selectable	-40 °C	70 °C	Board Lock Panel Stops	Phosphor Bronze	Jack	Vertical	8p8c (RJ45 Ethernet)	Through Hole
Amphenol ICC (Commercial Products) RJE061880310	1	Solder	Unshielded	1	Gold	Does Not Contain LED	Thermoplastic	30 Áin	0.76 Ám	User Selectable	-40 °C	70 °C		Phosphor Bronze	Jack	Vertical	8p8c (RJ45 Ethernet)	Through Hole
Amphenol ICC (Commercial Products) RJE06-188-1120	1	Solder	Shielded	1	Gold	Does Not Contain LED	Thermoplastic	6 Áin	0.152 Ám	User Selectable	-40 °C	70 °C	Board Lock Panel Stops	Phosphor Bronze	Jack	Vertical	8p8c (RJ45 Ethernet)	Through Hole
Amphenol ICC (Commercial Products) RJE061880110H	1	Solder	Unshielded	1	Gold	Does Not Contain LED	Thermoplastic	6 Áin	0.152 Ám	User Selectable	-40 °C	70 °C		Phosphor Bronze	Jack	Vertical	8p8c (RJ45 Ethernet)	Through Hole
Amphenol ICC (Commercial Products) RJE061881320	1	Solder	Shielded	1	Gold	Does Not Contain LED	Thermoplastic	30 Áin	0.76 Ám	User Selectable	-40 °C	70 °C	Board Lock Panel Stops	Phosphor Bronze	Jack	Vertical	8p8c (RJ45 Ethernet)	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded
