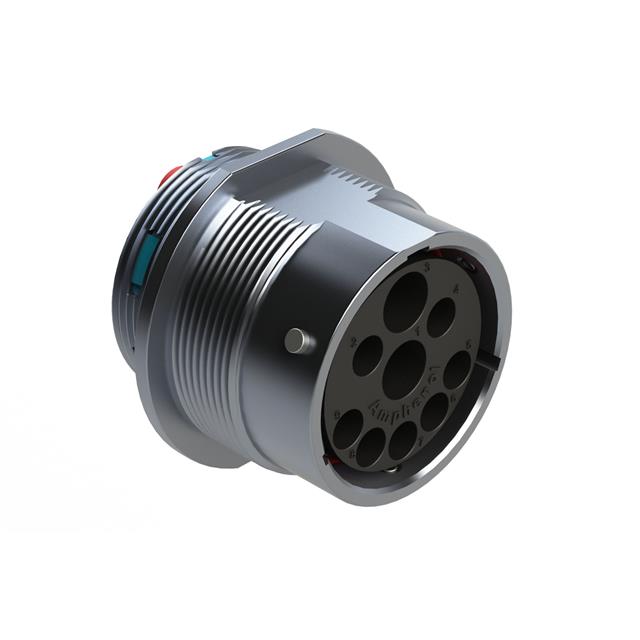

AHDBM04-24-91PR

Active

Amphenol Sine Systems Corp

SIZE 24, 9 POSITION ISOBUS RECEP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHDBM04-24-91PR

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	8 (2), 12 (2), 16 (5)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP68, IP69K
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included, Jam Nut Not Included
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Anodized
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	91
Shell Size - Insert [Min]	24
Shielding	Unshielded
Type	For Male Pins

AHDBM04 Series

Part	Shell Finish	Shell Material	Number of Positions	Mounting Feature	Type	Contact Shape	Contact Size	Orientation	Housing Color	Shielding	Fastening Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Ingress Protection	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Connector Type	Primary Material	Insert Material	Includes	Features
Amphenol Sine Systems Corp AHDBM04-24-91PR16	Anodized	Aluminum Alloy	9	Bulkhead - Front Side Nut	For Male Pins	Circular	12 (2) 16 (5) 8 (2)	Keyed	Black	Unshielded	Bayonet Lock	Crimp	-55 °C	125 °C	Contacts Not Included Jam Nut Not Included	IP68 IP69K	91	24	Receptacle Housing	Metal	Thermoplastic
Amphenol Sine Systems Corp AHDBM04-24-91PN-059	Anodized	Aluminum Alloy	9	Bulkhead - Front Side Nut	For Male Pins	Circular	12 (2) 16 (5) 8 (2)	Keyed	Black	Unshielded	Bayonet Lock	Crimp	-55 °C	125 °C	Contacts Not Included Jam Nut Not Included	IP68 IP69K	91	24	Receptacle Housing	Metal	Thermoplastic	1 Backshell 1 Connector	Backshell Cable Clamp
Amphenol Sine Systems Corp AHDBM04-24-91PR	Anodized	Aluminum Alloy	9	Bulkhead - Front Side Nut	For Male Pins	Circular	12 (2) 16 (5) 8 (2)	Keyed	Black	Unshielded	Bayonet Lock	Crimp	-55 °C	125 °C	Contacts Not Included Jam Nut Not Included	IP68 IP69K	91	24	Receptacle Housing	Metal	Thermoplastic
Amphenol Sine Systems Corp AHDBM04-24-91PR-059	Anodized	Aluminum Alloy	9	Bulkhead - Front Side Nut	For Male Pins	Circular	12 (2) 16 (5) 8 (2)	Keyed	Black	Unshielded	Bayonet Lock	Crimp	-55 °C	125 °C	Contacts Not Included Jam Nut Not Included	IP67 IP69K	91	24	Receptacle Housing	Metal	Thermoplastic	1 Backshell 1 Connector	Backshell Cable Clamp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.85
		10	$ 18.89

Description

General part information

AHDBM04 Series

9 Position Circular Connector Receptacle Housing Panel Mount
