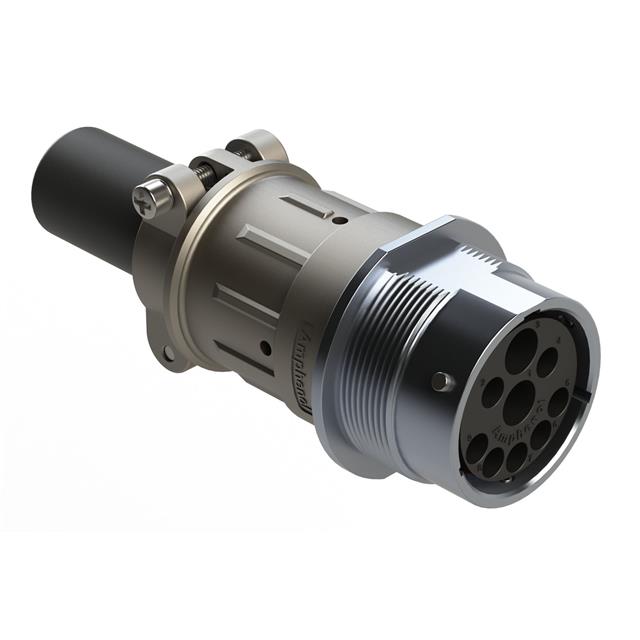

AHDBM04-24-91PN-059
ActiveAmphenol Sine Systems Corp
SIZE 24, 9 POSITION ISOBUSRECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AHDBM04-24-91PN-059
ActiveAmphenol Sine Systems Corp
SIZE 24, 9 POSITION ISOBUSRECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AHDBM04-24-91PN-059 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 8 (2), 12 (2), 16 (5) |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Backshell |
| Housing Color | Black |
| Includes | 1 Backshell, 1 Connector |
| Ingress Protection | IP68, IP69K |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included, Jam Nut Not Included |
| Number of Positions | 9 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Anodized |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert [Max] | 91 |
| Shell Size - Insert [Min] | 24 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 44.62 | |
| 10 | $ 39.07 | |||
| 25 | $ 37.38 | |||
| 50 | $ 36.18 | |||
| 200 | $ 34.97 | |||
Description
General part information
AHDBM04 Series
9 Position Circular Connector Receptacle Housing Panel Mount Backshell, Cable Clamp
