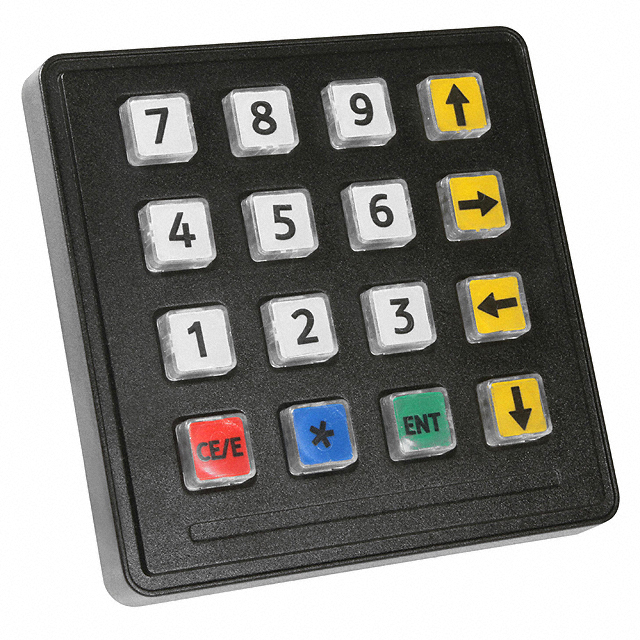

7207-1610203

Active

STORM INTERFACE

KEYPAD, 4 X 4, MATRIX, POLYMER, 50 MA, 24 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

7207-1610203

Active

STORM INTERFACE

KEYPAD, 4 X 4, MATRIX, POLYMER, 50 MA, 24 V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7207-1610203

Approval Agency	CE
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Key Color	Multiple
Key Type	Transparent Key Cap
Legend	Customizable (Included)
Legend Color	Black
Legend Type	Interchangeable
Matrix (Columns x Rows) [custom]	4
Matrix (Columns x Rows) [custom]	4
Mounting Type	Panel Mount, Front or Rear
Number of Keys	16
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Operational Life	2000000 Cycles
Output Type	1.81 mOhm
Switch Type	Conductive Rubber
Termination Style	Pin Header

7207 Series

Part	Key Color	Legend Color	Contact Rating @ Voltage	Mounting Type	Output Type	Approval Agency	Switch Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Legend	Illumination	Operational Life	Legend Type	Number of Keys	Ingress Protection	Key Type	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Illumination Voltage (Nominal)
STORM INTERFACE 7207-0410203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Non-Illuminated	2000000 Cycles	Interchangeable	4	IP65 - Dust Tight Water Resistant	Transparent Key Cap
STORM INTERFACE 7207-161W203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Illuminated - White	2000000 Cycles	Interchangeable	16	IP65 - Dust Tight Water Resistant	Transparent Key Cap	4	4	5 VDC
STORM INTERFACE 7207-121W203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Illuminated - White	2000000 Cycles	Interchangeable	12	IP65 - Dust Tight Water Resistant	Transparent Key Cap	3	4	5 VDC
STORM INTERFACE 7207-1610203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Non-Illuminated	2000000 Cycles	Interchangeable	16	IP65 - Dust Tight Water Resistant	Transparent Key Cap	4	4
STORM INTERFACE 7207-1210203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Non-Illuminated	2000000 Cycles	Interchangeable	12	IP65 - Dust Tight Water Resistant	Transparent Key Cap	3	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.92
		10	$ 46.04
		25	$ 44.60
		50	$ 41.72
		100	$ 39.42
		250	$ 38.27
Newark	Each	1	$ 54.71
		5	$ 53.34
		10	$ 51.98

Description

General part information

7207 Series

The 7207-1610203 is a 4 x 4 matrix tough Water-resistant Keypad feature moving, tactile keys with a responsive over-centre action. The key top graphics can be easily customized by the use of legend tiles under Snap-on transparent key caps. Once snapped into place the tamper resistant keycaps encapsulate and protect the key top graphics. The keypad can be installed on the surface or under the panel.
