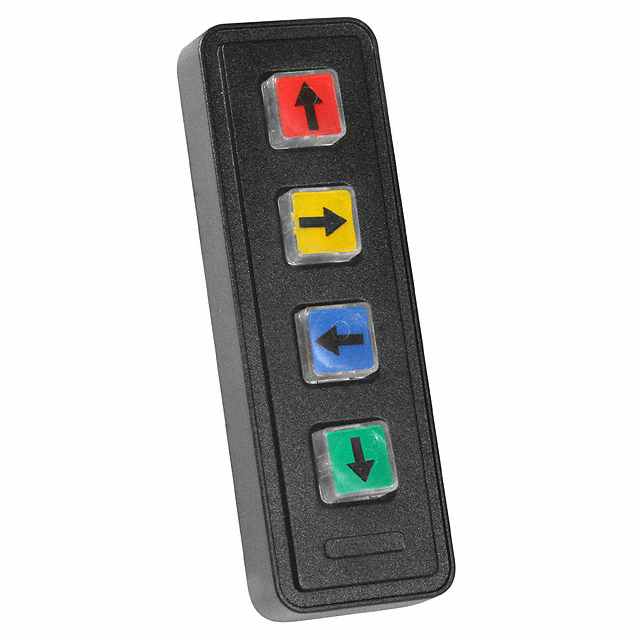

7207-0410203

Active

STORM INTERFACE

KEYPAD, 1 X 4, MATRIX, POLYMER, 50 MA, 24 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

7207-0410203

Active

STORM INTERFACE

KEYPAD, 1 X 4, MATRIX, POLYMER, 50 MA, 24 V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7207-0410203

Approval Agency	CE
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Key Color	Multiple
Key Type	Transparent Key Cap
Legend	Customizable (Included)
Legend Color	Black
Legend Type	Interchangeable
Mounting Type	Panel Mount, Front or Rear
Number of Keys	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Operational Life	2000000 Cycles
Output Type	1.81 mOhm
Switch Type	Conductive Rubber
Termination Style	Pin Header

7207 Series

Part	Key Color	Legend Color	Contact Rating @ Voltage	Mounting Type	Output Type	Approval Agency	Switch Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Legend	Illumination	Operational Life	Legend Type	Number of Keys	Ingress Protection	Key Type	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Illumination Voltage (Nominal)
STORM INTERFACE 7207-0410203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Non-Illuminated	2000000 Cycles	Interchangeable	4	IP65 - Dust Tight Water Resistant	Transparent Key Cap
STORM INTERFACE 7207-161W203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Illuminated - White	2000000 Cycles	Interchangeable	16	IP65 - Dust Tight Water Resistant	Transparent Key Cap	4	4	5 VDC
STORM INTERFACE 7207-121W203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Illuminated - White	2000000 Cycles	Interchangeable	12	IP65 - Dust Tight Water Resistant	Transparent Key Cap	3	4	5 VDC
STORM INTERFACE 7207-1610203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Non-Illuminated	2000000 Cycles	Interchangeable	16	IP65 - Dust Tight Water Resistant	Transparent Key Cap	4	4
STORM INTERFACE 7207-1210203	Multiple	Black	0.05 A 24 VDC	Panel Mount Front or Rear	1.81 mOhm	CE	Conductive Rubber	-20 C	60 °C	Pin Header	Customizable (Included)	Non-Illuminated	2000000 Cycles	Interchangeable	12	IP65 - Dust Tight Water Resistant	Transparent Key Cap	3	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.83
		10	$ 27.83
		25	$ 26.66
		50	$ 25.00
		100	$ 24.16
		250	$ 22.83
Newark	Each	1	$ 33.33
		5	$ 32.49
		10	$ 31.66

Description

General part information

7207 Series

Keypad Switch 4 Transparent Key Cap Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.05A @ 24VDC
