AT15-12PC-BM02

Active

Amphenol Sine Systems Corp

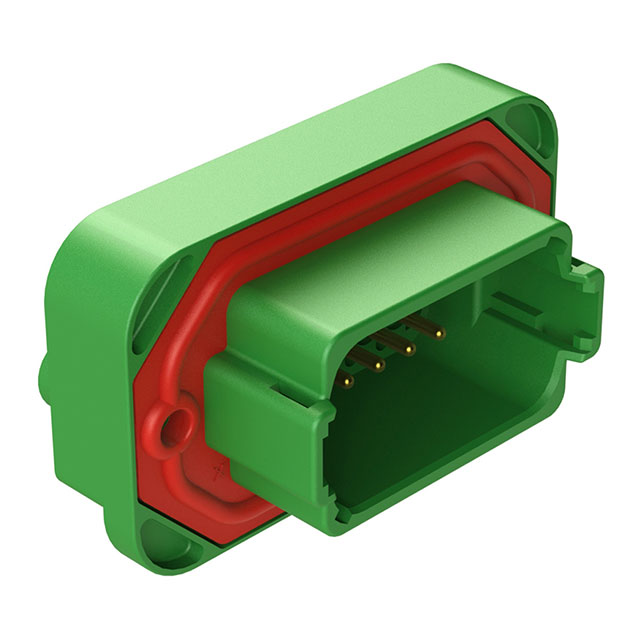

CONN HEADER VERT 12POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AT15-12PC-BM02

Active

Amphenol Sine Systems Corp

CONN HEADER VERT 12POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT15-12PC-BM02

Applications	Industrial, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13 A
Fastening Type	Latch Holder
Features	Mounting Flange, Board Guide, Potting Wall, Mating Flange
Ingress Protection	IP67
Insulation Color	Green
Insulation Height	30.1 mm
Insulation Height	1.185 in
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating	9.1 mm
Row Spacing - Mating	0.358 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

AT15 Series

Part	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Termination	Ingress Protection	Insulation Material	Contact Type	Features	Mounting Type	Insulation Color	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Contact Shape	Contact Material	Style	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Shrouding	Number of Rows	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Finish - Post
Amphenol Sine Systems Corp AT15-18PE-BM04BK	13 A	0.122 "	3.1 mm	0.189 in	4.8 mm	Solder	IP68 IP69K	Thermoplastic	Male Pin	Board Guide Mounting Flange Potting Wall	Through Hole	Black	Latch Holder	-55 °C	125 °C	Automotive Industrial	1.272 in	32.3 mm	All	Circular	Copper Alloy	Board to Cable/Wire	18	Receptacle	4.7 mm	0.185 "	250 VDC	Shrouded - 4 Wall	3
Amphenol Sine Systems Corp AT15-18PD-BM02BK	13 A	0.122 "	3.1 mm	0.189 in	4.8 mm	Solder	IP68 IP69K	Thermoplastic	Male Pin	Board Guide Mounting Flange Potting Wall	Through Hole	Black	Latch Holder	-55 °C	125 °C	Automotive Industrial	1.272 in	32.3 mm	All	Circular	Copper Alloy	Board to Cable/Wire	18	Receptacle	4.7 mm	0.185 "	250 VDC	Shrouded - 4 Wall	3	Gold
Amphenol Sine Systems Corp AT15-12PC-BM02	13 A	0.122 "	3.1 mm	0.358 in	9.1 mm	Solder	IP67	Thermoplastic	Male Pin	Board Guide Mating Flange Mounting Flange Potting Wall	Through Hole	Green	Latch Holder	-55 °C	125 °C	Automotive Industrial			All	Circular	Copper Alloy	Board to Cable/Wire	12	Receptacle			250 VDC	Shrouded - 4 Wall	2	Gold	30.1 mm	1.185 in	Gold
Amphenol Sine Systems Corp AT15-12PA-BM02	13 A	0.122 "	3.1 mm	0.358 in	9.1 mm	Solder	IP67	Thermoplastic	Male Pin	Board Guide Mating Flange Mounting Flange Potting Wall	Through Hole	Gray	Latch Holder	-55 °C	125 °C	Automotive Industrial			All	Circular	Copper Alloy	Board to Cable/Wire	12	Receptacle			250 VDC	Shrouded - 4 Wall	2	Gold	30.1 mm	1.185 in	Gold
Amphenol Sine Systems Corp AT15-1612PB-BM03	25 A	0.122 "	3.1 mm			Solder		Thermoplastic	Male Pin	Board Guide	Panel Mount Through Hole	Black	Push-Pull	-55 °C	125 °C		1.307 in	33.2 mm	All	Circular	Copper Alloy		13	Receptacle	4.7 mm	0.185 "		Shrouded - 4 Wall	3				Tin
Amphenol Sine Systems Corp AT15-12PA-BM01	13 A	0.122 "	3.1 mm	0.358 in	9.1 mm	Solder	IP67	Thermoplastic	Male Pin	Board Guide Mating Flange Mounting Flange	Through Hole	Gray	Latch Holder	-55 °C	125 °C	Automotive Industrial			All	Circular	Copper Alloy	Board to Cable/Wire	12	Receptacle			250 VDC	Shrouded - 4 Wall	2	Gold	30.1 mm	1.185 in	Gold
Amphenol Sine Systems Corp AT15-6P2-BM02BLU	13 A	0.122 "	3.1 mm	0.358 in	9.1 mm	Solder	IP67	Thermoplastic	Male Pin	Board Guide Mating Flange Mounting Flange Potting Wall	Through Hole	Blue	Latch Holder	-55 °C	125 °C	Automotive Industrial			All	Circular	Copper Alloy	Board to Cable/Wire	4	Receptacle			250 VDC	Shrouded - 4 Wall	2	Gold	30.3 mm	1.193 "	Gold
Amphenol Sine Systems Corp AT15-18PE-BM03GY	13 A	0.122 "	3.1 mm	0.189 in	4.8 mm	Solder	IP68 IP69K	Thermoplastic	Male Pin	Board Guide Mounting Flange	Through Hole	Gray	Latch Holder	-55 °C	125 °C	Automotive Industrial	1.272 in	32.3 mm	All	Circular	Copper Alloy	Board to Cable/Wire	18	Receptacle	4.7 mm	0.185 "	250 VDC	Shrouded - 4 Wall	3
Amphenol Sine Systems Corp AT15-18PD-BM03BN	13 A	0.122 "	3.1 mm	0.189 in	4.8 mm	Solder	IP68 IP69K	Thermoplastic	Male Pin	Board Guide Mounting Flange	Through Hole	Brown	Latch Holder	-55 °C	125 °C	Automotive Industrial	1.272 in	32.3 mm	All	Circular	Copper Alloy	Board to Cable/Wire	18	Receptacle	4.7 mm	0.185 "	250 VDC	Shrouded - 4 Wall	3
Amphenol Sine Systems Corp AT15-08PB-BM03	13 A	0.122 "	3.1 mm	0.358 in	9.1 mm	Solder	IP67	Thermoplastic	Male Pin	Board Guide Mating Flange Mounting Flange	Through Hole	Black	Latch Holder	-55 °C	125 °C	Automotive Industrial			All	Circular	Copper Alloy	Board to Cable/Wire	8	Receptacle			250 VDC	Shrouded - 4 Wall	2		30 mm	1.181 in	Tin
