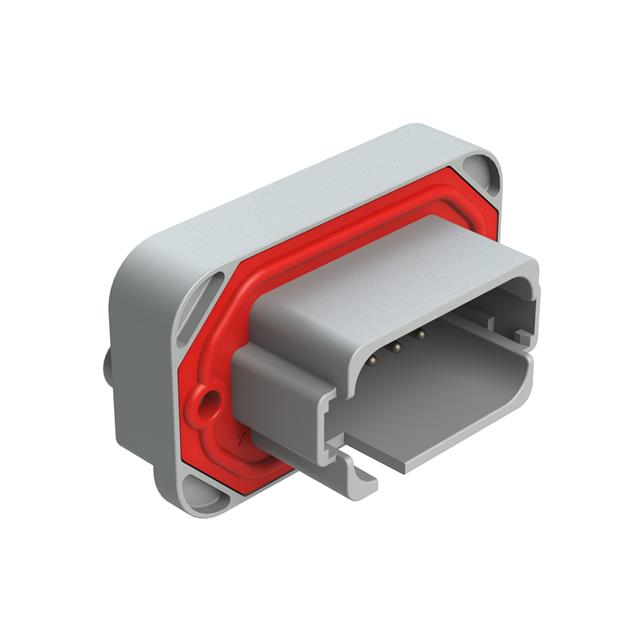

AT15-18PE-BM03GY

Active

Amphenol Sine Systems Corp

18 POSITION, STRAIGHT FLANGE MOU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AT15-18PE-BM03GY

Active

Amphenol Sine Systems Corp

18 POSITION, STRAIGHT FLANGE MOU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT15-18PE-BM03GY

Applications	Industrial, Automotive
Connector Type	Receptacle
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13 A
Fastening Type	Latch Holder
Features	Board Guide, Mounting Flange
Ingress Protection	IP68, IP69K
Insulation Color	Gray
Insulation Height [z]	1.272 in
Insulation Height [z]	32.3 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	4.7 mm
Pitch - Mating	0.185 "
Row Spacing - Mating	0.189 in
Row Spacing - Mating	4.8 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

AT15 Series

Part	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Termination	Ingress Protection	Insulation Material	Contact Type	Features	Mounting Type	Insulation Color	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Contact Shape	Contact Material	Style	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Shrouding	Number of Rows	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Finish - Post
Amphenol Sine Systems Corp AT15-18PE-BM04BK	13 A	0.122 "	3.1 mm	0.189 in	4.8 mm	Solder	IP68 IP69K	Thermoplastic	Male Pin	Board Guide Mounting Flange Potting Wall	Through Hole	Black	Latch Holder	-55 °C	125 °C	Automotive Industrial	1.272 in	32.3 mm	All	Circular	Copper Alloy	Board to Cable/Wire	18	Receptacle	4.7 mm	0.185 "	250 VDC	Shrouded - 4 Wall	3
Amphenol Sine Systems Corp AT15-18PD-BM02BK	13 A	0.122 "	3.1 mm	0.189 in	4.8 mm	Solder	IP68 IP69K	Thermoplastic	Male Pin	Board Guide Mounting Flange Potting Wall	Through Hole	Black	Latch Holder	-55 °C	125 °C	Automotive Industrial	1.272 in	32.3 mm	All	Circular	Copper Alloy	Board to Cable/Wire	18	Receptacle	4.7 mm	0.185 "	250 VDC	Shrouded - 4 Wall	3	Gold
Amphenol Sine Systems Corp AT15-12PC-BM02	13 A	0.122 "	3.1 mm	0.358 in	9.1 mm	Solder	IP67	Thermoplastic	Male Pin	Board Guide Mating Flange Mounting Flange Potting Wall	Through Hole	Green	Latch Holder	-55 °C	125 °C	Automotive Industrial			All	Circular	Copper Alloy	Board to Cable/Wire	12	Receptacle			250 VDC	Shrouded - 4 Wall	2	Gold	30.1 mm	1.185 in	Gold
Amphenol Sine Systems Corp AT15-12PA-BM02	13 A	0.122 "	3.1 mm	0.358 in	9.1 mm	Solder	IP67	Thermoplastic	Male Pin	Board Guide Mating Flange Mounting Flange Potting Wall	Through Hole	Gray	Latch Holder	-55 °C	125 °C	Automotive Industrial			All	Circular	Copper Alloy	Board to Cable/Wire	12	Receptacle			250 VDC	Shrouded - 4 Wall	2	Gold	30.1 mm	1.185 in	Gold
Amphenol Sine Systems Corp AT15-1612PB-BM03	25 A	0.122 "	3.1 mm			Solder		Thermoplastic	Male Pin	Board Guide	Panel Mount Through Hole	Black	Push-Pull	-55 °C	125 °C		1.307 in	33.2 mm	All	Circular	Copper Alloy		13	Receptacle	4.7 mm	0.185 "		Shrouded - 4 Wall	3				Tin
Amphenol Sine Systems Corp AT15-12PA-BM01	13 A	0.122 "	3.1 mm	0.358 in	9.1 mm	Solder	IP67	Thermoplastic	Male Pin	Board Guide Mating Flange Mounting Flange	Through Hole	Gray	Latch Holder	-55 °C	125 °C	Automotive Industrial			All	Circular	Copper Alloy	Board to Cable/Wire	12	Receptacle			250 VDC	Shrouded - 4 Wall	2	Gold	30.1 mm	1.185 in	Gold
Amphenol Sine Systems Corp AT15-6P2-BM02BLU	13 A	0.122 "	3.1 mm	0.358 in	9.1 mm	Solder	IP67	Thermoplastic	Male Pin	Board Guide Mating Flange Mounting Flange Potting Wall	Through Hole	Blue	Latch Holder	-55 °C	125 °C	Automotive Industrial			All	Circular	Copper Alloy	Board to Cable/Wire	4	Receptacle			250 VDC	Shrouded - 4 Wall	2	Gold	30.3 mm	1.193 "	Gold
Amphenol Sine Systems Corp AT15-18PE-BM03GY	13 A	0.122 "	3.1 mm	0.189 in	4.8 mm	Solder	IP68 IP69K	Thermoplastic	Male Pin	Board Guide Mounting Flange	Through Hole	Gray	Latch Holder	-55 °C	125 °C	Automotive Industrial	1.272 in	32.3 mm	All	Circular	Copper Alloy	Board to Cable/Wire	18	Receptacle	4.7 mm	0.185 "	250 VDC	Shrouded - 4 Wall	3
Amphenol Sine Systems Corp AT15-18PD-BM03BN	13 A	0.122 "	3.1 mm	0.189 in	4.8 mm	Solder	IP68 IP69K	Thermoplastic	Male Pin	Board Guide Mounting Flange	Through Hole	Brown	Latch Holder	-55 °C	125 °C	Automotive Industrial	1.272 in	32.3 mm	All	Circular	Copper Alloy	Board to Cable/Wire	18	Receptacle	4.7 mm	0.185 "	250 VDC	Shrouded - 4 Wall	3
Amphenol Sine Systems Corp AT15-08PB-BM03	13 A	0.122 "	3.1 mm	0.358 in	9.1 mm	Solder	IP67	Thermoplastic	Male Pin	Board Guide Mating Flange Mounting Flange	Through Hole	Black	Latch Holder	-55 °C	125 °C	Automotive Industrial			All	Circular	Copper Alloy	Board to Cable/Wire	8	Receptacle			250 VDC	Shrouded - 4 Wall	2		30 mm	1.181 in	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	210	$ 11.39

Description

General part information

AT15 Series

Connector Header Through Hole 18 position 0.185" (4.70mm)

Documents

Technical documentation and resources
