031-30220-1

Active

Amphenol RF

CONN BNC 0HZ TO 4GHZ 50OHM CLAMP ST CABLE MOUNT PL SILVER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC 0HZ TO 4GHZ 50OHM CLAMP ST CABLE MOUNT PL SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	031-30220-1

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Contact, 1 Clamp, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Center Contact Material	Body Finish	Housing Color	Connector Type	Shield Termination	Center Contact Plating	Impedance	Cable Group	Frequency - Max [Max]	Number of Ports	Contact Termination	Dielectric Material	Insertion Loss	Connector Style	Body Material	Mating Cycles	Voltage Rating	Mounting Feature	Includes	Fastening Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Impedance
Amphenol RF 031-30232-33	Beryllium Copper	Nickel	Silver	Female Socket Jack	Clamp	Gold	Non-Constant	Size-8 Triax	50 MHz	1	Solder	Polytetrafluoroethylene (PTFE)	0.2 dB	BNC Triaxial	Brass	500	5000 V	Bulkhead - Front Side Nut	1 Bushing 1 Clamp 1 Connector 1 Lockwasher 1 Nut 2 Gaskets 3 Braid Clamps	Bayonet Lock	Weatherproof	-65 ░C	165 °C
Amphenol RF 031-30220-1	Brass	Nickel	Silver	Male Pin Plug	Clamp	Silver		141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	4 GHz	1	Crimp	Polytetrafluoroethylene (PTFE)	0.2 dB	BNC	Brass	500	500 V		1 Clamp 1 Connector 1 Contact	Bayonet Lock		-65 ░C	165 °C	Free Hanging (In-Line)	50 Ohms
Amphenol RF 031-30231-5	Brass	Nickel	Silver	Male Pin Plug	Clamp	Gold	Non-Constant		500 MHz	1	Solder	Polytetrafluoroethylene (PTFE)	0.2 dB	BNC Triaxial	Brass	500				Bayonet Lock	Weatherproof	-65 ░C	165 °C
Amphenol RF 031-30231-77	Brass	Nickel	Silver	Male Pin Plug	Clamp	Gold	Non-Constant		500 MHz	1	Solder	Polytetrafluoroethylene (PTFE)	0.2 dB	BNC Triaxial	Brass	500				Bayonet Lock	Weatherproof	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

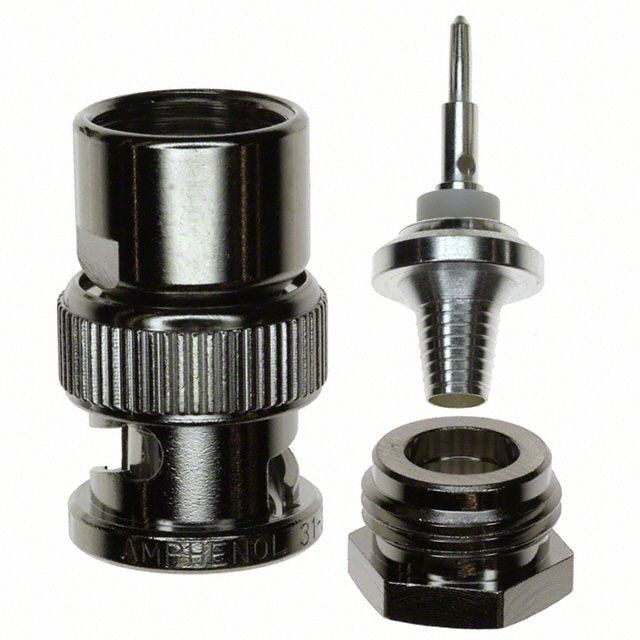

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
