031-30232-33

Active

Amphenol RF

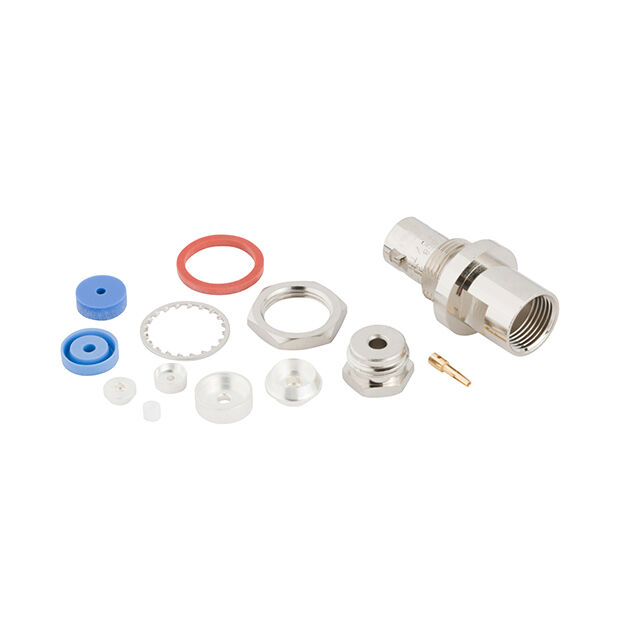

CONN BNC TRIAX JACK STR SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC TRIAX JACK STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	031-30232-33

Body Finish	Nickel
Body Material	Brass
Cable Group	Size-8 Triax
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Triaxial, BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	50 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Clamp, 1 Bushing, 1 Nut, 2 Gaskets, 1 Lockwasher, 1 Connector, 3 Braid Clamps
Ingress Protection	Weatherproof
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	5000 V

Part	Center Contact Material	Body Finish	Housing Color	Connector Type	Shield Termination	Center Contact Plating	Impedance	Cable Group	Frequency - Max [Max]	Number of Ports	Contact Termination	Dielectric Material	Insertion Loss	Connector Style	Body Material	Mating Cycles	Voltage Rating	Mounting Feature	Includes	Fastening Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Impedance
Amphenol RF 031-30232-33	Beryllium Copper	Nickel	Silver	Female Socket Jack	Clamp	Gold	Non-Constant	Size-8 Triax	50 MHz	1	Solder	Polytetrafluoroethylene (PTFE)	0.2 dB	BNC Triaxial	Brass	500	5000 V	Bulkhead - Front Side Nut	1 Bushing 1 Clamp 1 Connector 1 Lockwasher 1 Nut 2 Gaskets 3 Braid Clamps	Bayonet Lock	Weatherproof	-65 ░C	165 °C
Amphenol RF 031-30220-1	Brass	Nickel	Silver	Male Pin Plug	Clamp	Silver		141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	4 GHz	1	Crimp	Polytetrafluoroethylene (PTFE)	0.2 dB	BNC	Brass	500	500 V		1 Clamp 1 Connector 1 Contact	Bayonet Lock		-65 ░C	165 °C	Free Hanging (In-Line)	50 Ohms
Amphenol RF 031-30231-5	Brass	Nickel	Silver	Male Pin Plug	Clamp	Gold	Non-Constant		500 MHz	1	Solder	Polytetrafluoroethylene (PTFE)	0.2 dB	BNC Triaxial	Brass	500				Bayonet Lock	Weatherproof	-65 ░C	165 °C
Amphenol RF 031-30231-77	Brass	Nickel	Silver	Male Pin Plug	Clamp	Gold	Non-Constant		500 MHz	1	Solder	Polytetrafluoroethylene (PTFE)	0.2 dB	BNC Triaxial	Brass	500				Bayonet Lock	Weatherproof	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 285.16

General part information

BNC, Triaxial Connector Jack, Female Socket Non-Constant Panel Mount Solder

Technical documentation and resources

No documents available
