Q2-Z-3/64-01-SS1000FT

Active

Qualtek

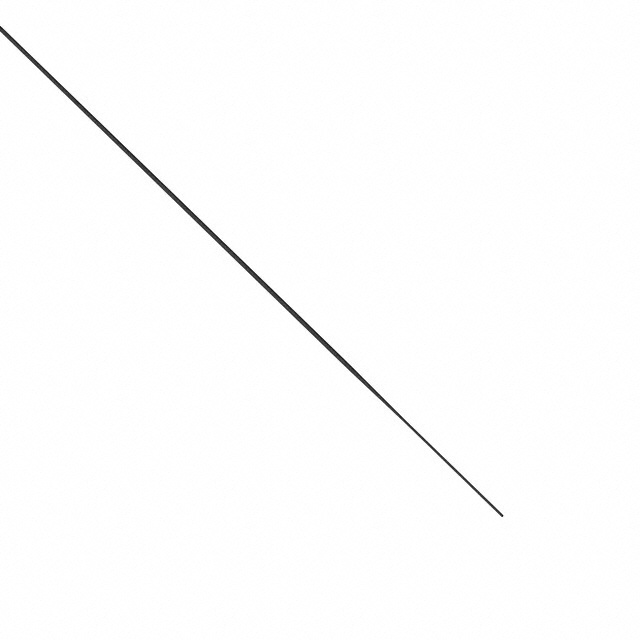

HEATSHRINK 0.046" X 1000' BLACK

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 0.046" X 1000' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-Z-3/64-01-SS1000FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.023 in
Inner Diameter - Recovered [diameter]	0.58 mm
Inner Diameter - Supplied [diameter]	1.17 mm
Inner Diameter - Supplied [diameter]	0.046 in
Length	1000 ft
Length	304.8 m
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.013 in
Recovered Wall Thickness	0.33 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Type	Shelf Life	Color	Features	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Material	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]
Qualtek Q2-Z-3/64-01-QX50FT	Tubing Flexible	144 Months	Black	Flame Retardant	0.013 in	0.33 mm	-55 °C	125 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C	15.2 m	50 ft	1.17 mm	0.046 in	70 °C	2 to 1	0.023 in	0.58 mm
Qualtek Q2-Z-3/64-01-QB48IN-25	Tubing Flexible	144 Months	Black	Flame Retardant	0.013 in	0.33 mm	-55 °C	125 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C			1.17 mm	0.046 in	70 °C	2 to 1	0.023 in	0.58 mm	1.22 m	4 ft
Qualtek Q2-Z-3/64-01-SS1000FT	Tubing Flexible	144 Months	Black	Flame Retardant	0.013 in	0.33 mm	-55 °C	125 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C	304.8 m	1000 ft	1.17 mm	0.046 in	70 °C	2 to 1	0.023 in	0.58 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.046" (1.17mm) 2 to 1 Black 1000.0' (304.8m)
