Q2-Z-3/64-01-QX50FT

Obsolete

Qualtek

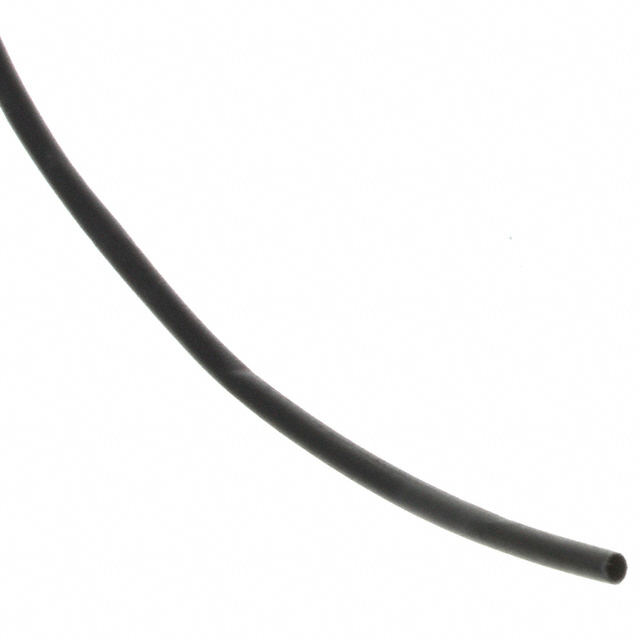

HEATSHRINK 0.046" X 50' BLACK

Search across all available documentation for this part.

Obsolete

Qualtek

HEATSHRINK 0.046" X 50' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-Z-3/64-01-QX50FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.023 in
Inner Diameter - Recovered [diameter]	0.58 mm
Inner Diameter - Supplied [diameter]	1.17 mm
Inner Diameter - Supplied [diameter]	0.046 in
Length	15.2 m
Length	50 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.013 in
Recovered Wall Thickness	0.33 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Type	Shelf Life	Color	Features	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Material	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]
Qualtek Q2-Z-3/64-01-QX50FT	Tubing Flexible	144 Months	Black	Flame Retardant	0.013 in	0.33 mm	-55 °C	125 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C	15.2 m	50 ft	1.17 mm	0.046 in	70 °C	2 to 1	0.023 in	0.58 mm
Qualtek Q2-Z-3/64-01-QB48IN-25	Tubing Flexible	144 Months	Black	Flame Retardant	0.013 in	0.33 mm	-55 °C	125 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C			1.17 mm	0.046 in	70 °C	2 to 1	0.023 in	0.58 mm	1.22 m	4 ft
Qualtek Q2-Z-3/64-01-SS1000FT	Tubing Flexible	144 Months	Black	Flame Retardant	0.013 in	0.33 mm	-55 °C	125 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C	304.8 m	1000 ft	1.17 mm	0.046 in	70 °C	2 to 1	0.023 in	0.58 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Flexible 0.046" (1.17mm) 2 to 1 Black 50.0' (15.2m)
