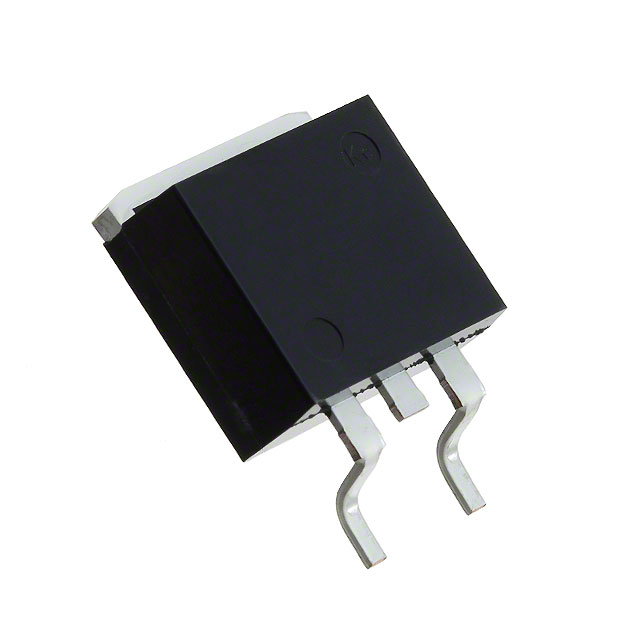

SCS215AJTLL - SCS215AJTLL

SCS215AJTLL

Active
Rohm Semiconductor

SILICON CARBIDE SCHOTTKY DIODE, SINGLE, 650 V, 15 A, 23 NC, TO-263AB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTO-263AB (LPTL) Taping SpecSiC Flammability+34
SCS215AJTLL - SCS215AJTLL

SCS215AJTLL

Active
Rohm Semiconductor

SILICON CARBIDE SCHOTTKY DIODE, SINGLE, 650 V, 15 A, 23 NC, TO-263AB

Deep-Dive with AI

DocumentsTO-263AB (LPTL) Taping SpecSiC Flammability+34

Technical Specifications

Parameters and characteristics for this part

SpecificationSCS215AJTLL
Capacitance @ Vr, F550 pF
Current - Average Rectified (Io)15 A
Current - Reverse Leakage @ Vr300 µA
Mounting TypeSurface Mount
Operating Temperature - Junction [Max]175 °C
Package / CaseD2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Reverse Recovery Time (trr)0 ns
SpeedNo Recovery Time
TechnologySiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]650 V
Voltage - Forward (Vf) (Max) @ If1.55 V
